Two Unused 2019 Cummins C2000 N6CB 2MW Natural Gas Generators – 12.47kV
Two Unused 2019 Cummins C2000 N6CB 2MW Natural Gas Generators – 12.47kV
Location:Classified
Description
ARC Power Systems is offering two unused 2019 Cummins C2000 N6CB enclosed natural gas generator set packages.
Each generator is rated 2,000 kW continuous at 12,470 volts, 60 Hz and three-phase, providing 4 MW of combined continuous generation capacity.
These Cummins 2 MW natural gas generators are from a canceled project and were never commissioned or placed into service.
Package Highlights:

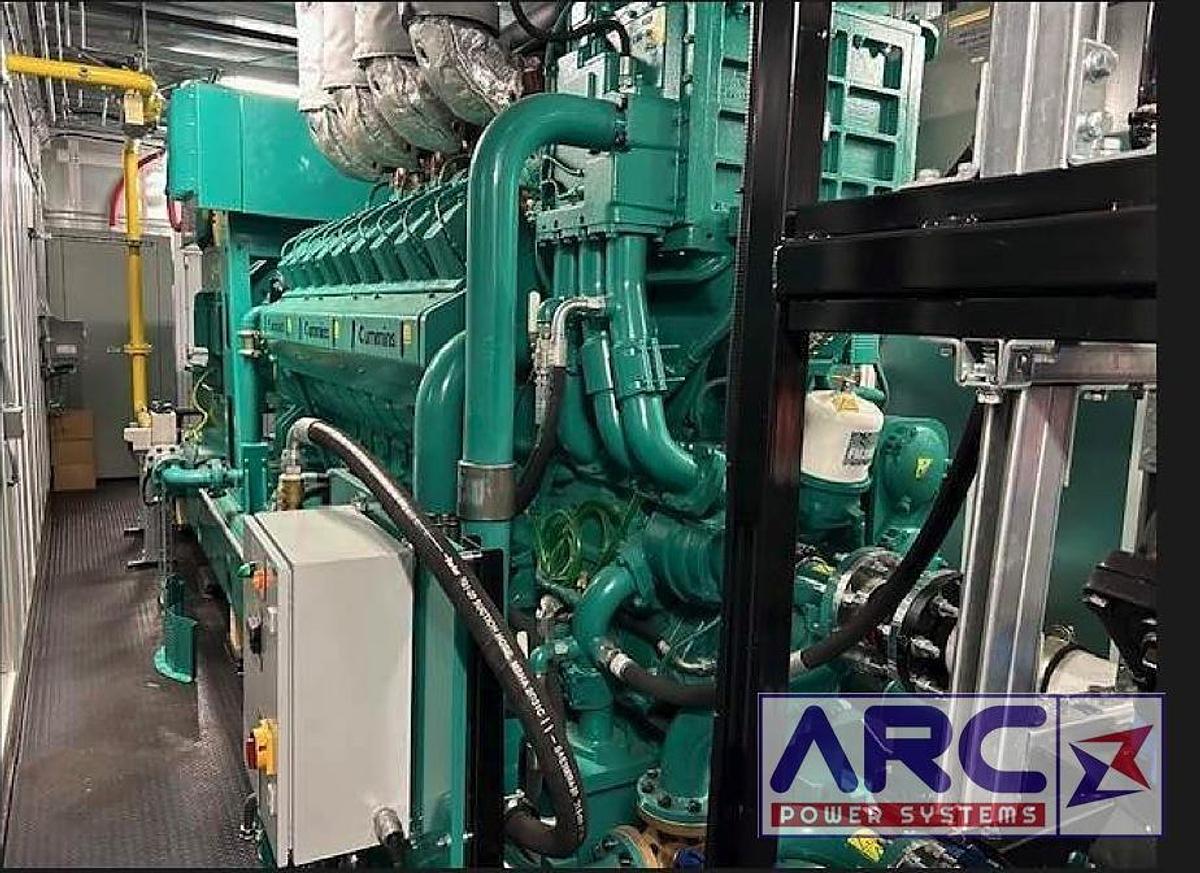

- Cummins QSV91-G4 V18 lean-burn natural gas engine
- 2000 kW continuous-duty output per generator
- 12.47 kV, 60 Hz, three-phase electrical output
- 1,500 RPM engine operating speed

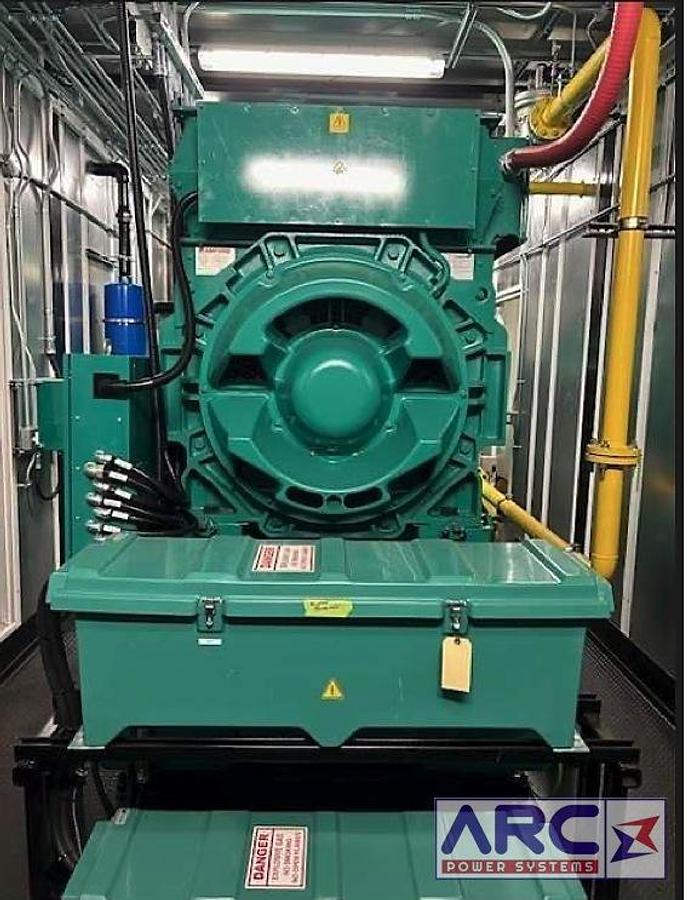

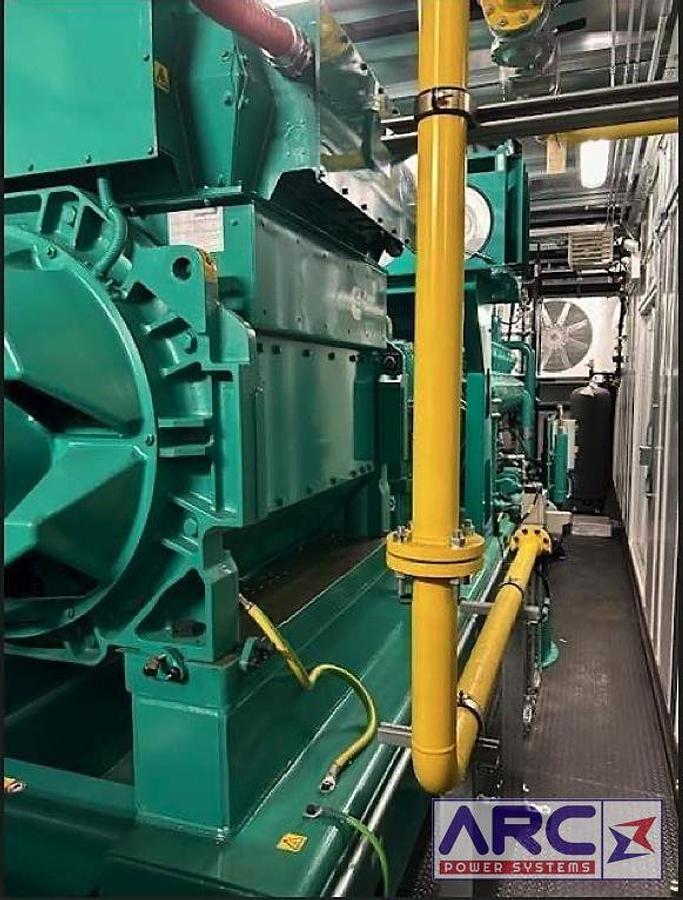

- HVSI804T medium-voltage alternator

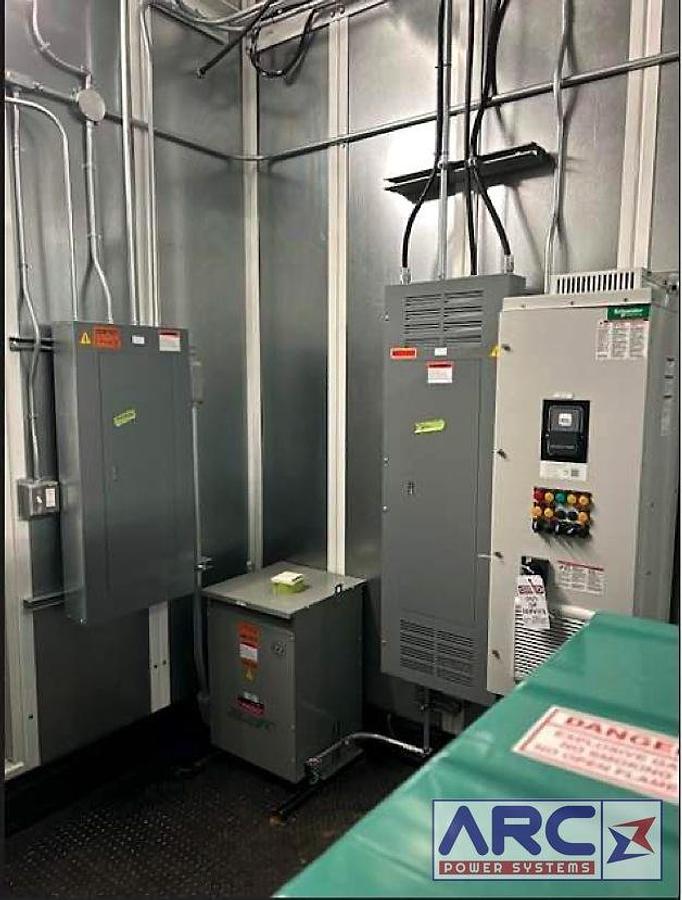

- Cummins PowerCommand 3.3 / PCC 3300 controls
- Digital synchronization and load-sharing capability

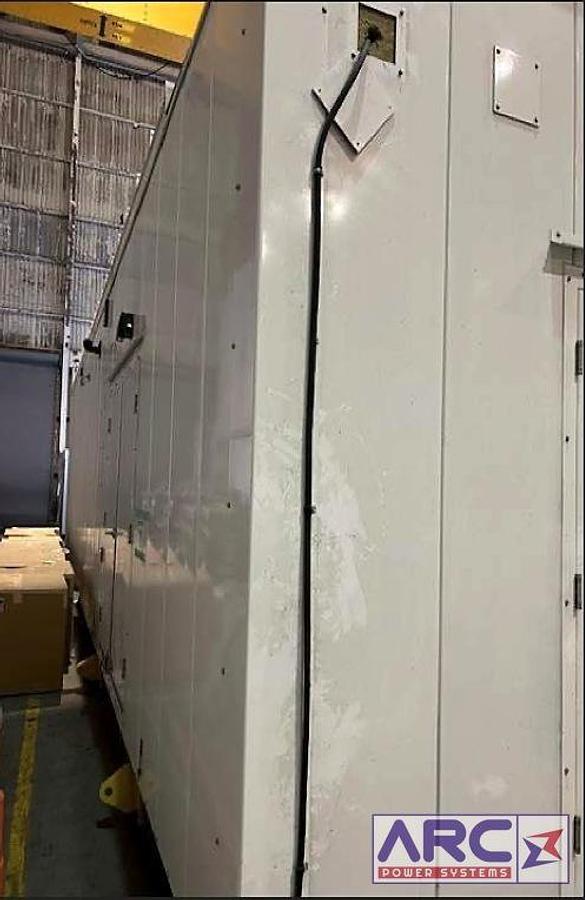

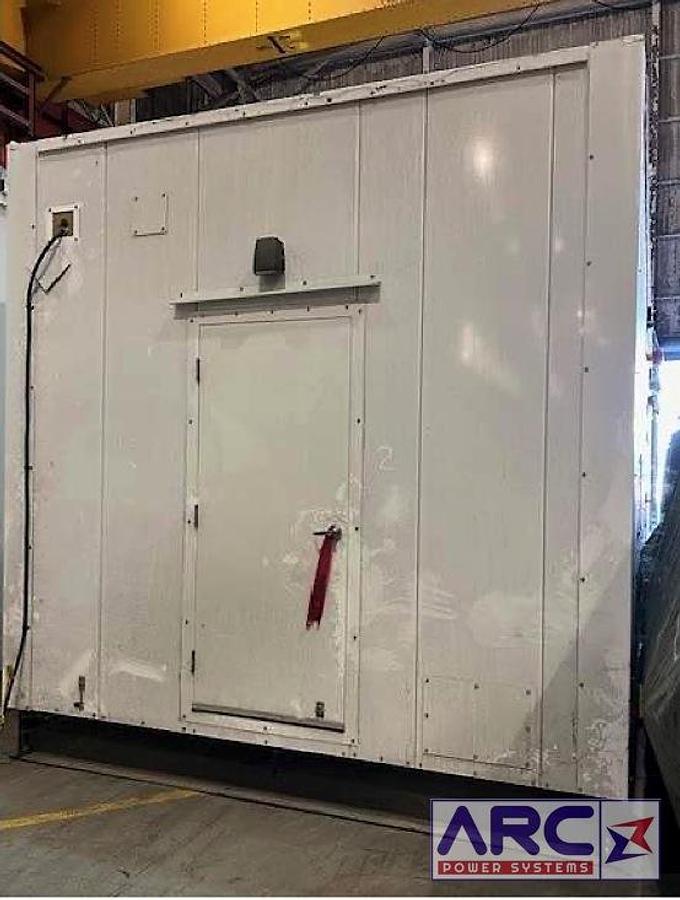

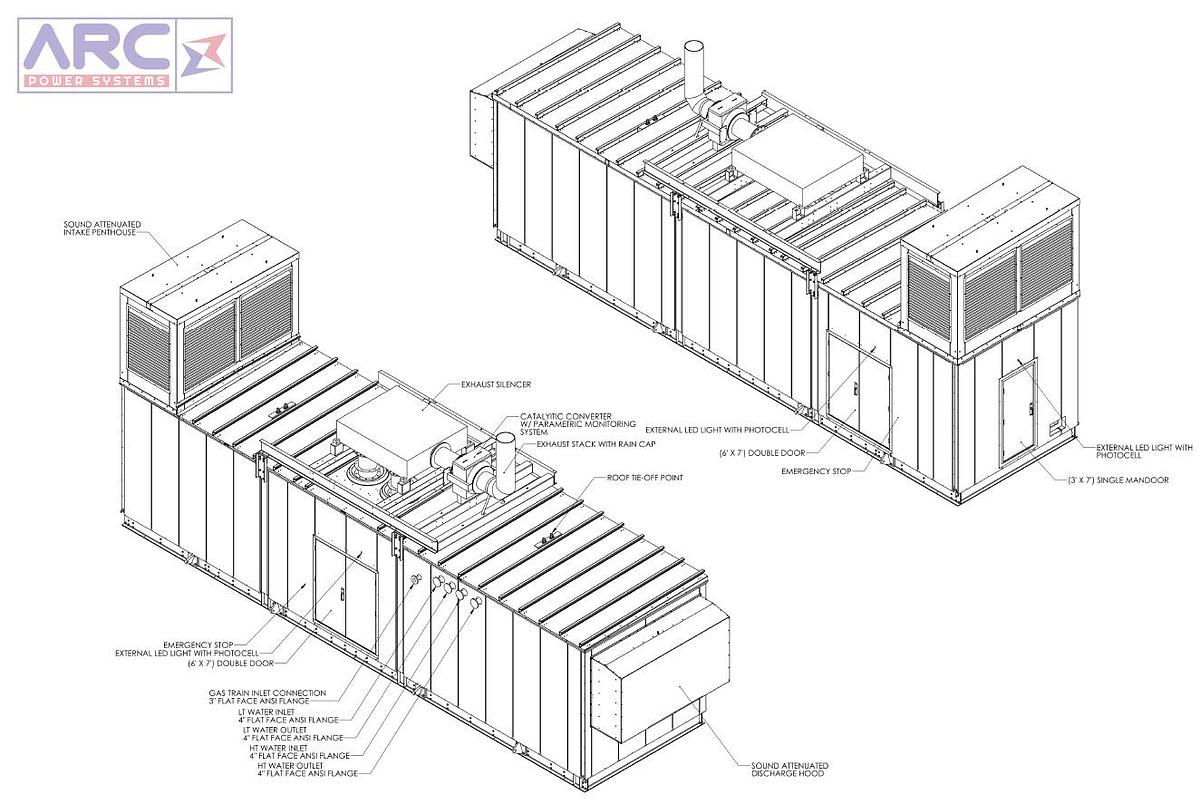

- Sound-attenuated aluminum generator enclosure
- Approximately 70 dBA at 23 feet

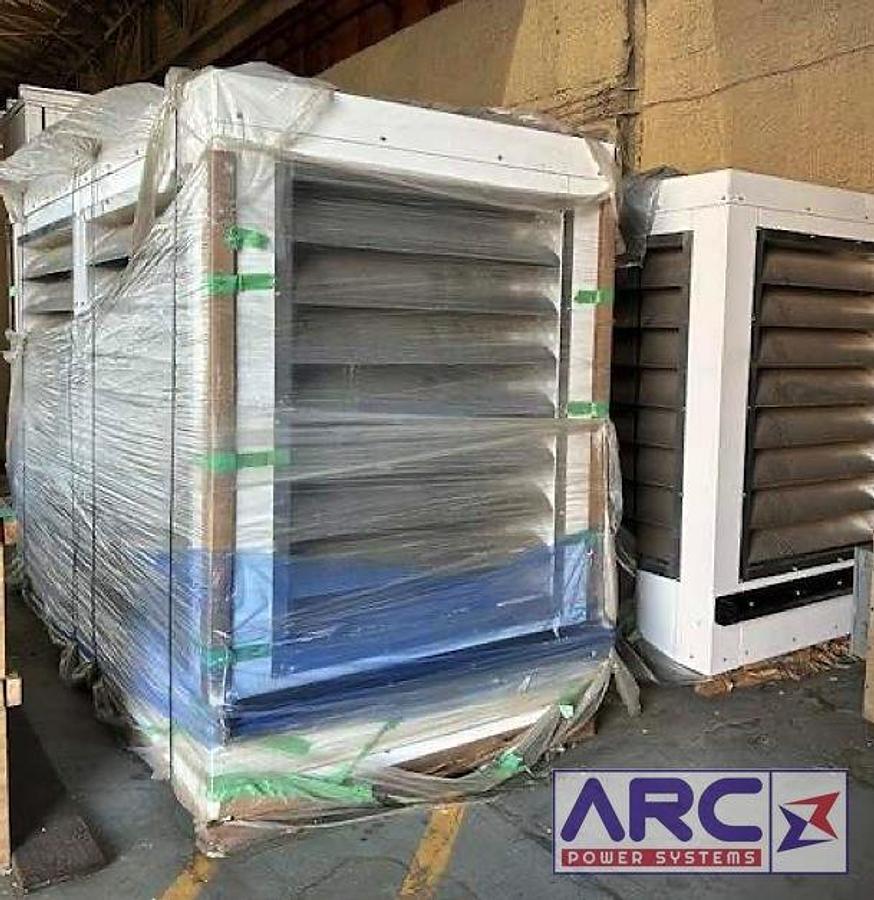

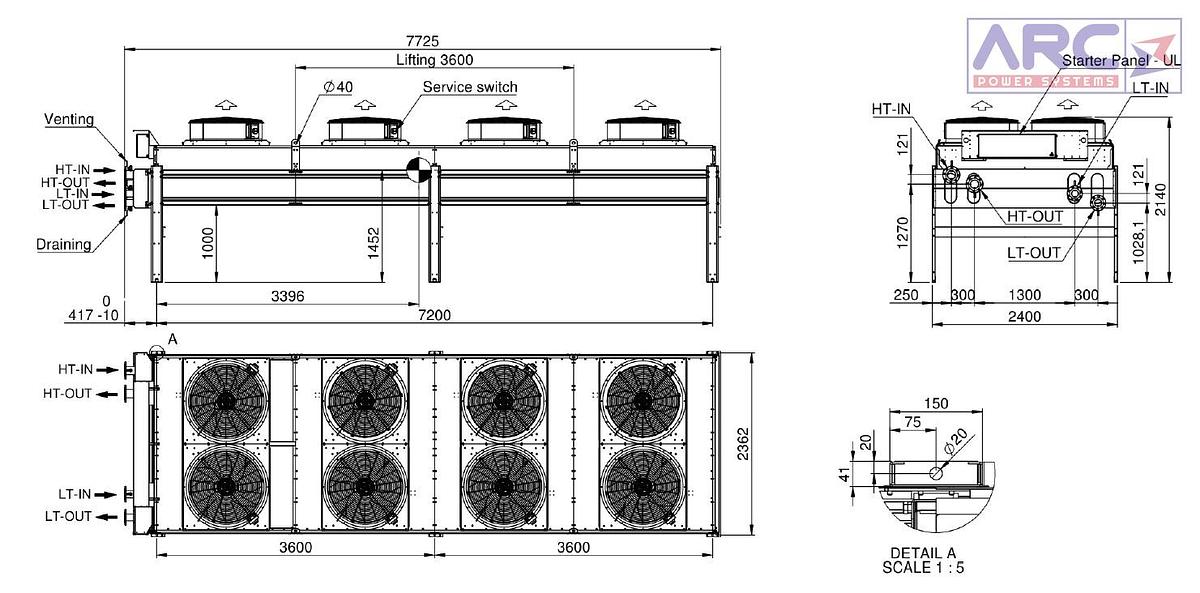

- Alfa Laval dual-circuit remote radiator

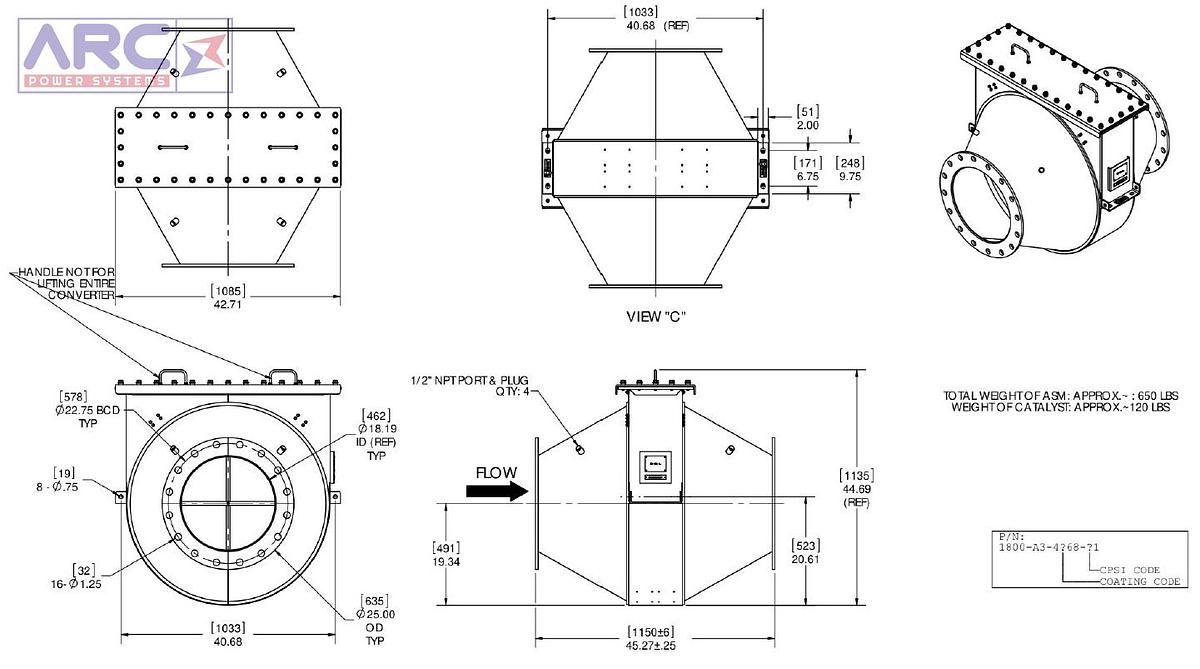

- DCL OxiCat oxidation catalyst with monitoring
- Natural gas regulation and safety train
- 24 VDC electric-start system with batteries and charger
- DC prelube pump and lube-oil makeup system
- Enclosure ventilation, heaters and detection systems
- Matching 12.47 kV States Manufacturing fused main-switch equipment

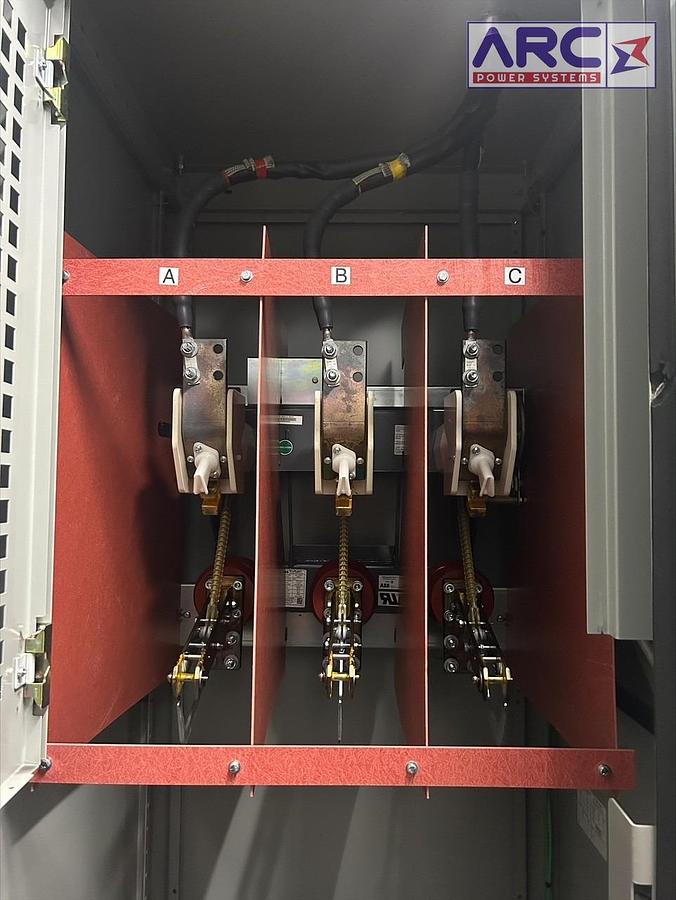

The medium-voltage switch equipment includes a 15 kV load-interrupter switch, primary fuses, 1,200-amp copper bus and 95 kV BIL insulation rating.

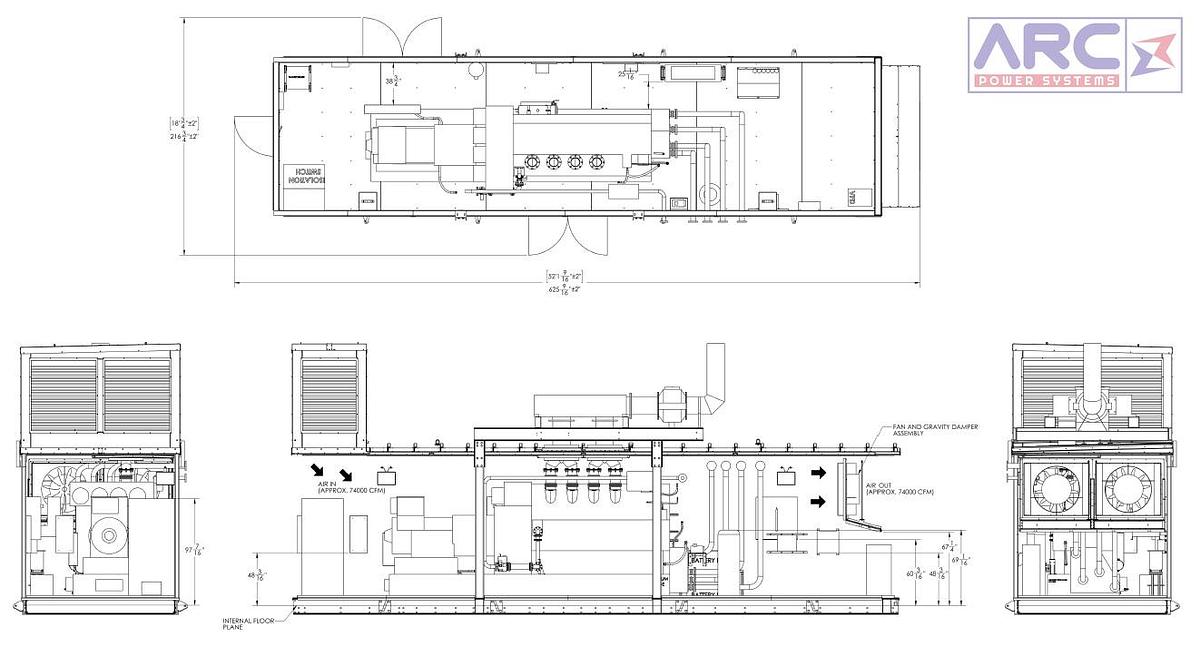

Preliminary assembled package dimensions are approximately 49 feet long × 13 feet 3 inches wide, with an estimated dry package weight of 90,000 pounds per unit.
An external 480 V, three-phase auxiliary-power source is required. A 12.47 kV-to-480 V step-down transformer is not included.
Suitable for continuous industrial power, data-center power generation, microgrids, utility support, campus energy and CHP applications.
Contact ARC Power Systems for pricing, technical documents, inspection details and complete included scope.
ARC Power Systems
(213) 371-2848 Call/Text
arcpowersystems.com
Two unused 2019 Cummins C2000 N6CB 2MW natural gas generators: 12.47kV, 60Hz, enclosed, with remote radiators and auxiliaries.
Cummins C2000 N6CB natural gas generator
2MW natural gas generator, 2000kW gas genset, Cummins QSV91 generator, 12.47kV generator, continuous-duty natural gas generator
Cummins, C2000 N6CB, QSV91, 2MW generator, 2000kW generator, natural gas generator, 12.47kV, continuous power, enclosed generator, Data Center generator
Specifications
| Manufacturer | Cummins |
| Model | C2000 N6CB |
| Year | 2019 |
| Condition | New |
| Stock Number | ARC1050 |
| RPM | 1500 |
| Year | 2019 |
| Condition Detail | Unused surplus; never commissioned |
| Fuel Type | Natural Gas |
| Make | Cummins |
| Model | C2000 N6CB |
| Engine Manufacturer | Cummins |
| Engine Series | QSV91G |
| Frequency (Hz) | 60 |
| KW | 2000 |
| KVA | 2500 |
| Duty Rating | Continuous |
| Total Package Output | 4000kW / 5000kVA |
| Voltage (V) | 7,200 / 12,470 |
| Phase (Ø) | 3-Phase |
| Wires | 4-Wire |
| Engine Configuration | V18, 91.6 L, lean-burn natural gas |
| Control System | Cummins PowerCommand 3.3 model-family platform |
| Alternator | Brushless, four-pole, two-bearing, geared |
| Excitation | PMG |
| Alternator Rise | 105°C |
| Power Factor (PF) | 0.8 lagging to 1.0 |
| Enclosure | Weather-protected, sound-attenuated |
| Sound Rating | 70 dBA at 23'ft |

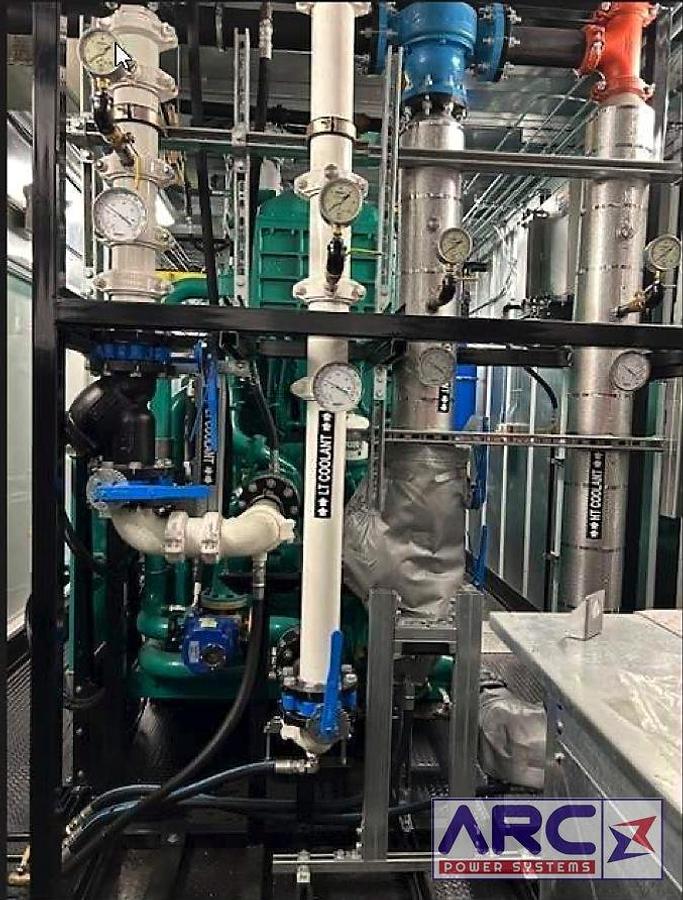

| Cooling | Remote horizontal-core radiator and heat exchanger |
| Starting System | 24 VDC with batteries, charger and prelube provisions |
| Isolation | 15 kV unfused isolation switch |
| Emissions Equipment | Oxidation catalyst included |
