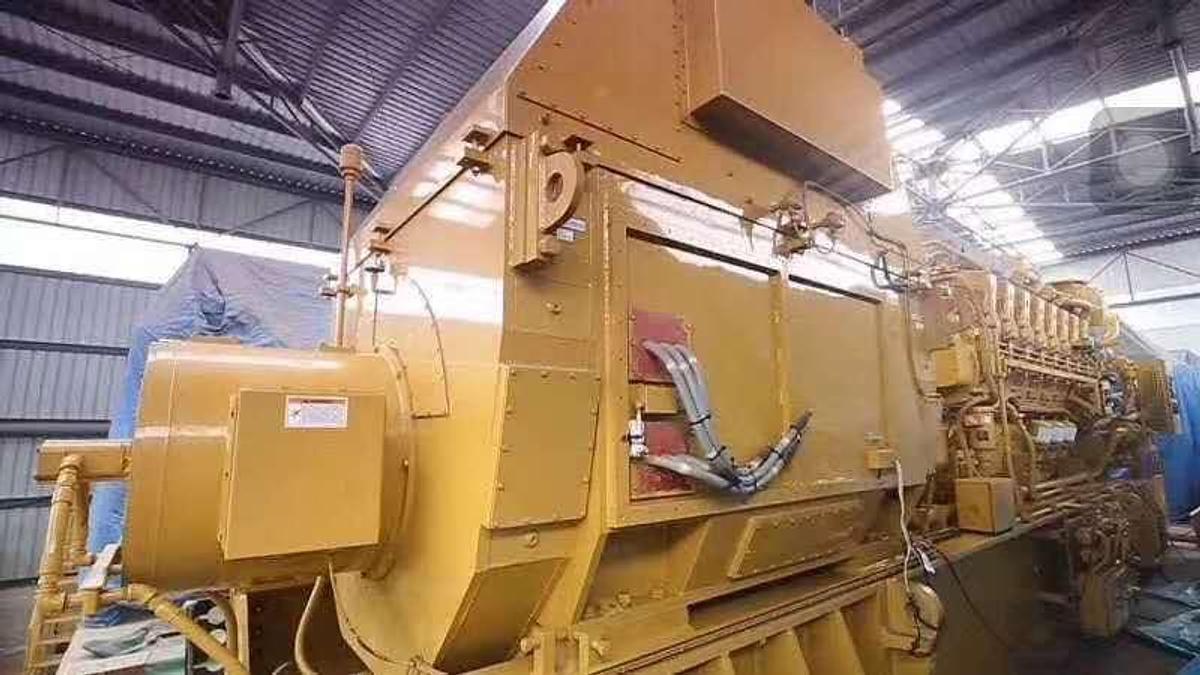

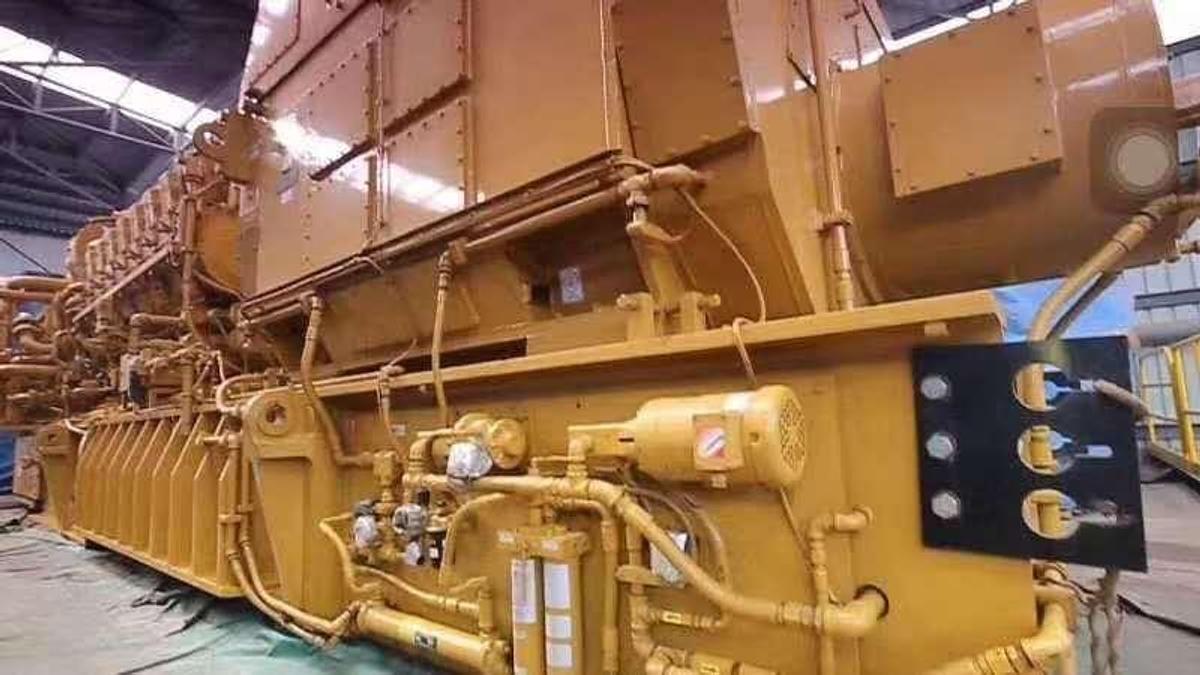

(8) Caterpillar CAT 3616 Diesel Generator Sets – 36.8 MW Total Capacity – 11.2 kV – 60 Hz

36.8 MW CAT 3616 Surplus New Power Generation Package

Rare opportunity to acquire a utility-scale power generation package consisting of eight (8) Caterpillar 3616 diesel generator sets delivering approximately 36.8 MW of installed capacity. Paired with Kato 5,500 kVA alternators and configured for 11.2 kV, 60 Hz operation, these units are ideally suited for independent power producers, industrial facilities, mining operations, data centers, and large-scale infrastructure projects worldwide.

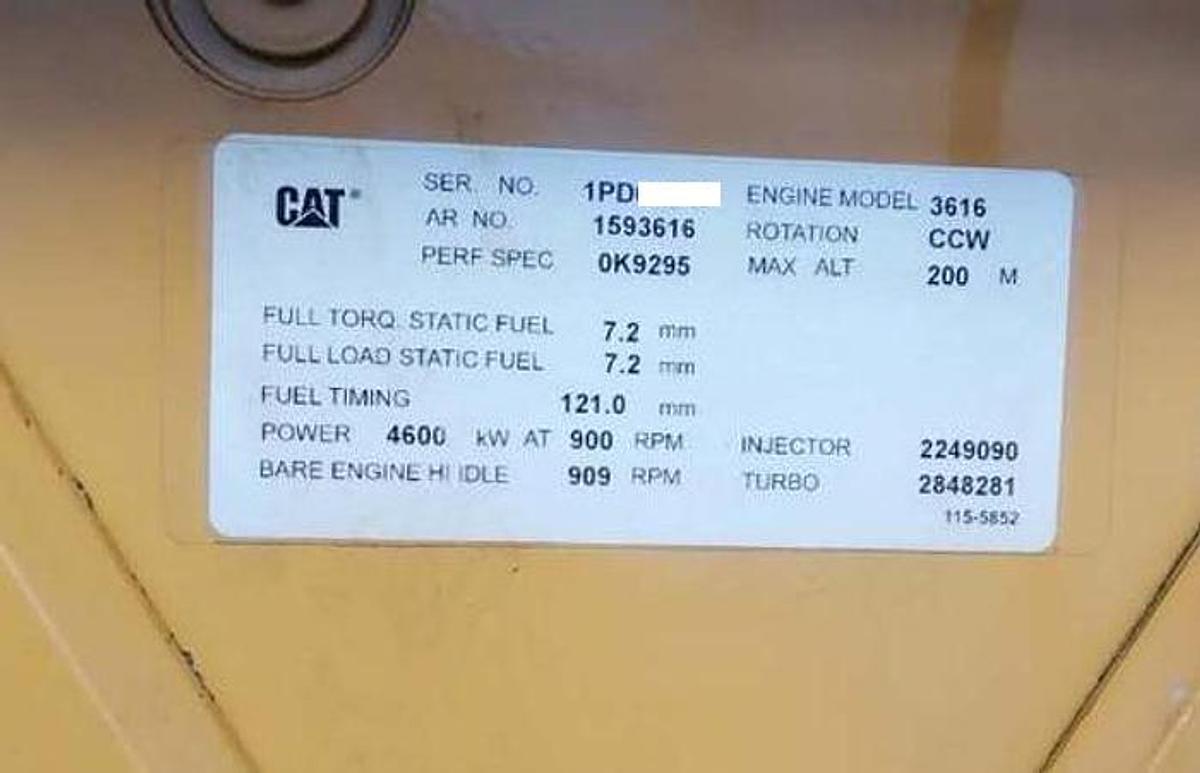

Engine

• Caterpillar 3616 Diesel Engine
• V16 Configuration
• Four-Cycle Design
• Turbocharged & Aftercooled
• Rated Output: 4,600 BKW (4.6 MW)
• Maximum Output: 5,060 BKW (110% Overload for 1 Hour)
• Rated Speed: 900 RPM
• Compression Ratio: 13:1
• Bore x Stroke: 280 mm x 300 mm
• Displacement: 296 Liters
• Mean Piston Speed: 9.0 m/s
• Brake Mean Effective Pressure (BMEP): 1,730 kPa
• Firing Pressure (Maximum): 22,830 kPa
• Dry Engine Weight: 28,500 kg

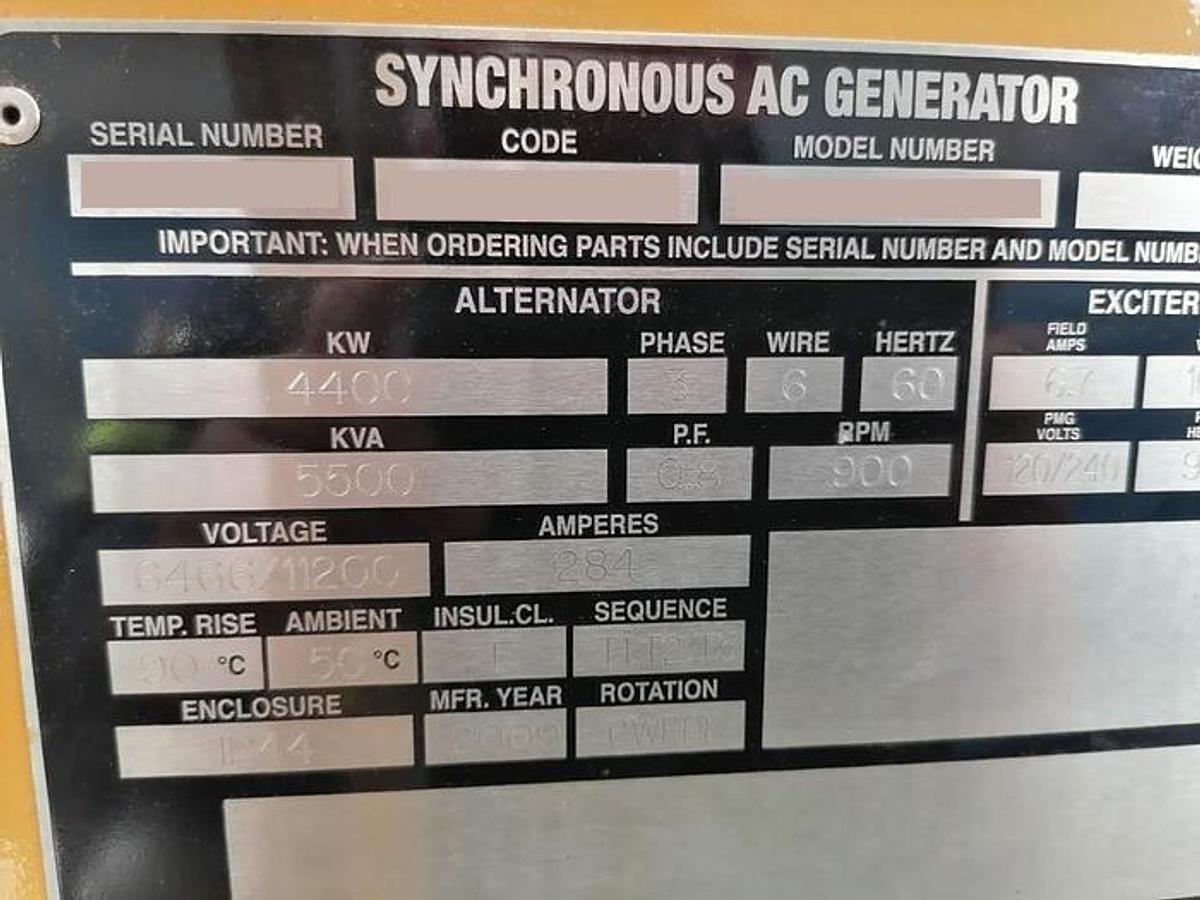

Alternator

• Kato Engineering 8P12-4700
• Synchronous Brushless Alternator
• Direct-Coupled Rotating Exciter
• Continuous Rating: 5,500 kVA
• Continuous Output: 4,400 kWe
• Voltage: 11.2 kV
• Frequency: 60 Hz
• Three-Phase
• Power Factor: 0.8
• Rated Speed: 900 RPM
• Insulation Class: F
• Enclosure Rating: IP44
• Totally Enclosed Water-to-Air Cooled Design
• Two-Sleeve Bearing Configuration
• Net Weight: 25,946 kg

Air Intake System

• Air Flow at 100% Load: 501.6 m³/min
• Maximum Air Inlet Temperature: 45°C
• Air Inlet Restriction (New): 1.25 / 3 kPa
• Air Cooler Differential Pressure (100% Load): 3.4 kPa

Key Elements

• Proven Caterpillar 3616 medium-speed diesel engine platform
• Utility-grade 11.2 kV power generation package
• 5,500 kVA Kato synchronous alternators
• 110% overload capability for one hour
• Turbocharged and aftercooled design
• Low-speed 900 RPM operation for extended service life
• Heavy-duty industrial and utility power generation application
• IP44 enclosed alternators with water-to-air cooling
• Approximately 36.8 MW total installed capacity available
• Suitable for utility, mining, oil & gas, industrial, microgrid, and independent power producer projects

Worldwide logistics and export assistance available
