1998 Waukesha L36GLD 600kW Natural Gas Generator Set - Continuous Duty

Pre-Owned Waukesha L36GLD 600kW Natural Gas Generator Set

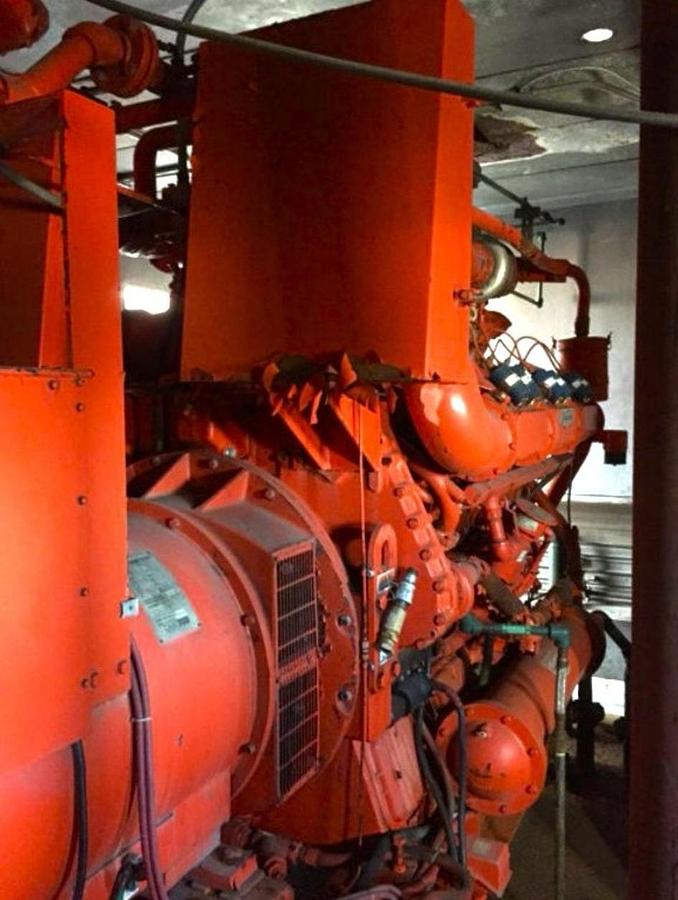

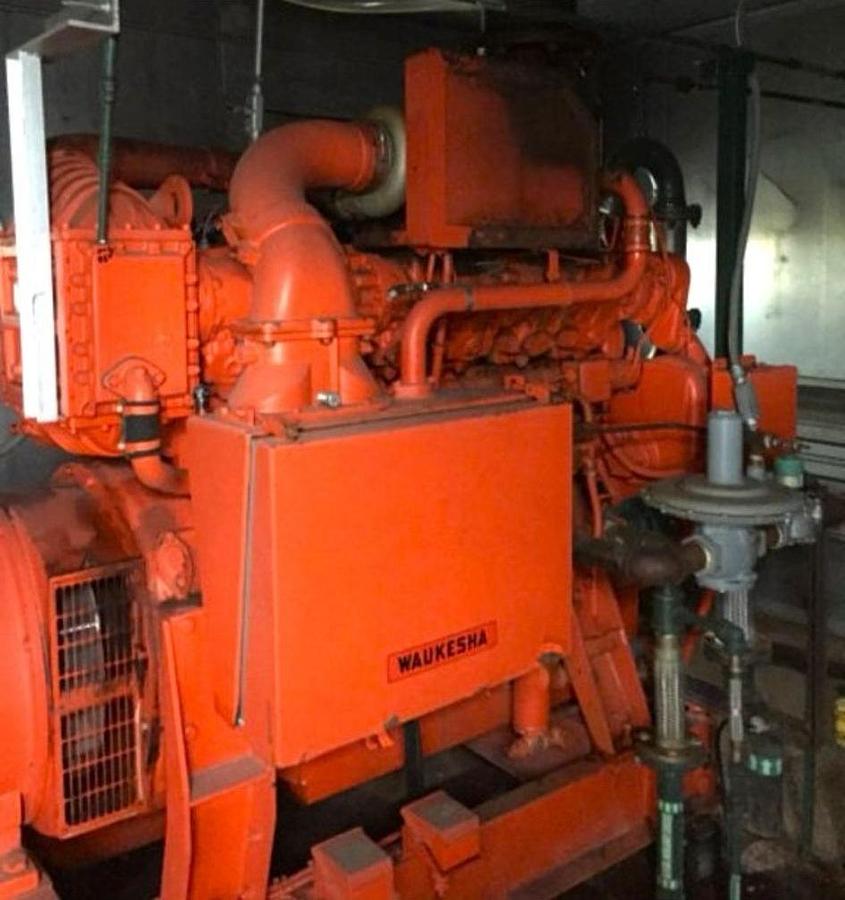

This is a factory-matched Waukesha VGF36GLD natural gas generator set coupled with a Newage Stamford HC1534F1 alternator. Designed for heavy-duty continuous base load applications, this unit delivers 600 kW / 750 kVA at 480 V, 60 Hz, 3-phase, and 1800 RPM.

Manufactured by Waukesha Engine Division (Dresser Industries, USA), this engine-generator package is known for its long life, high thermal efficiency, and reliable operation in prime or continuous power environments.

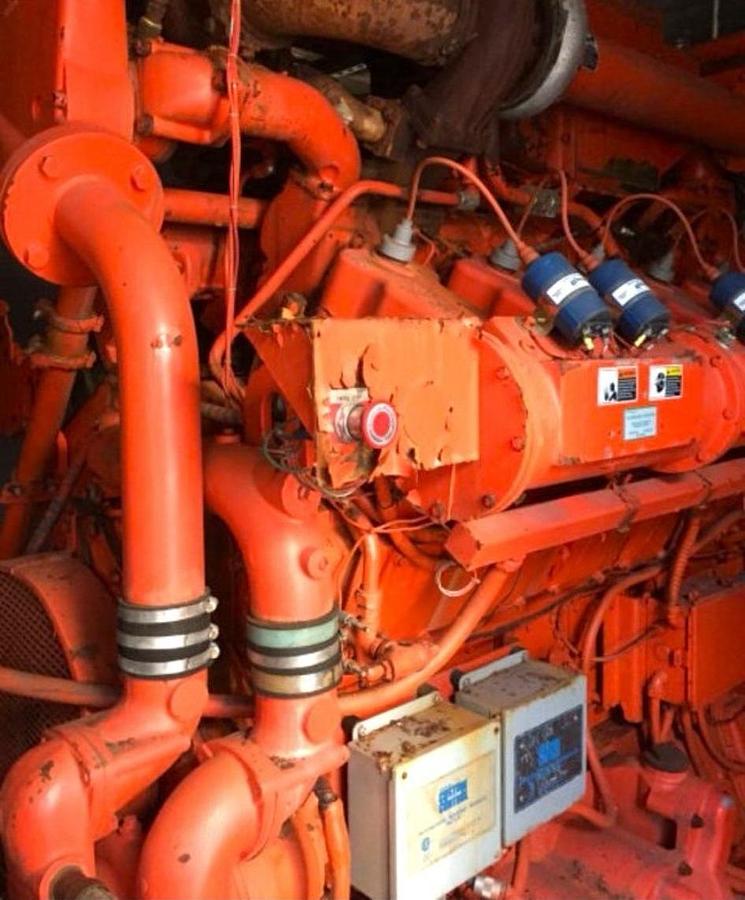

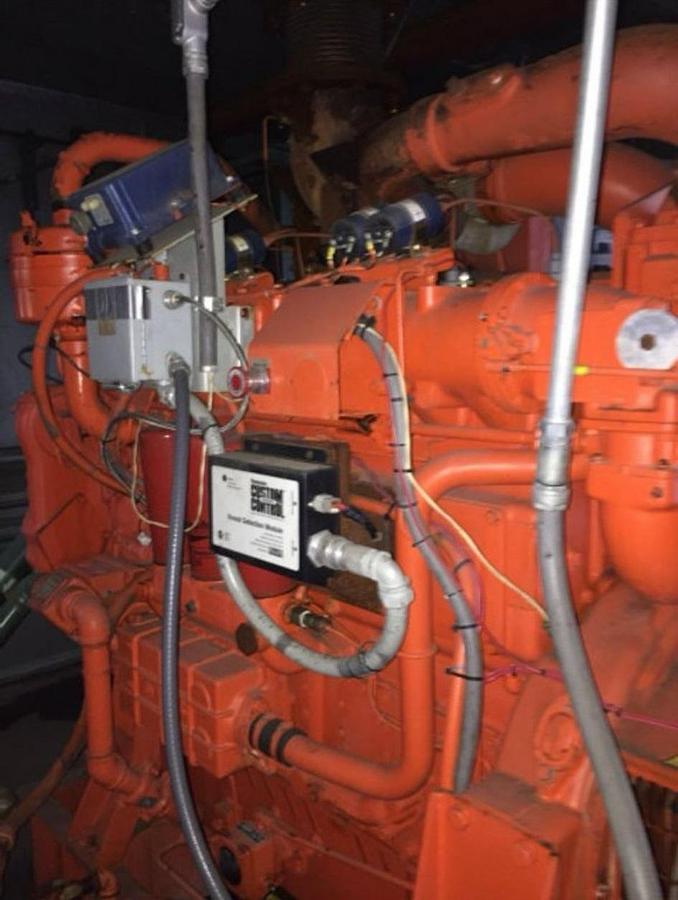

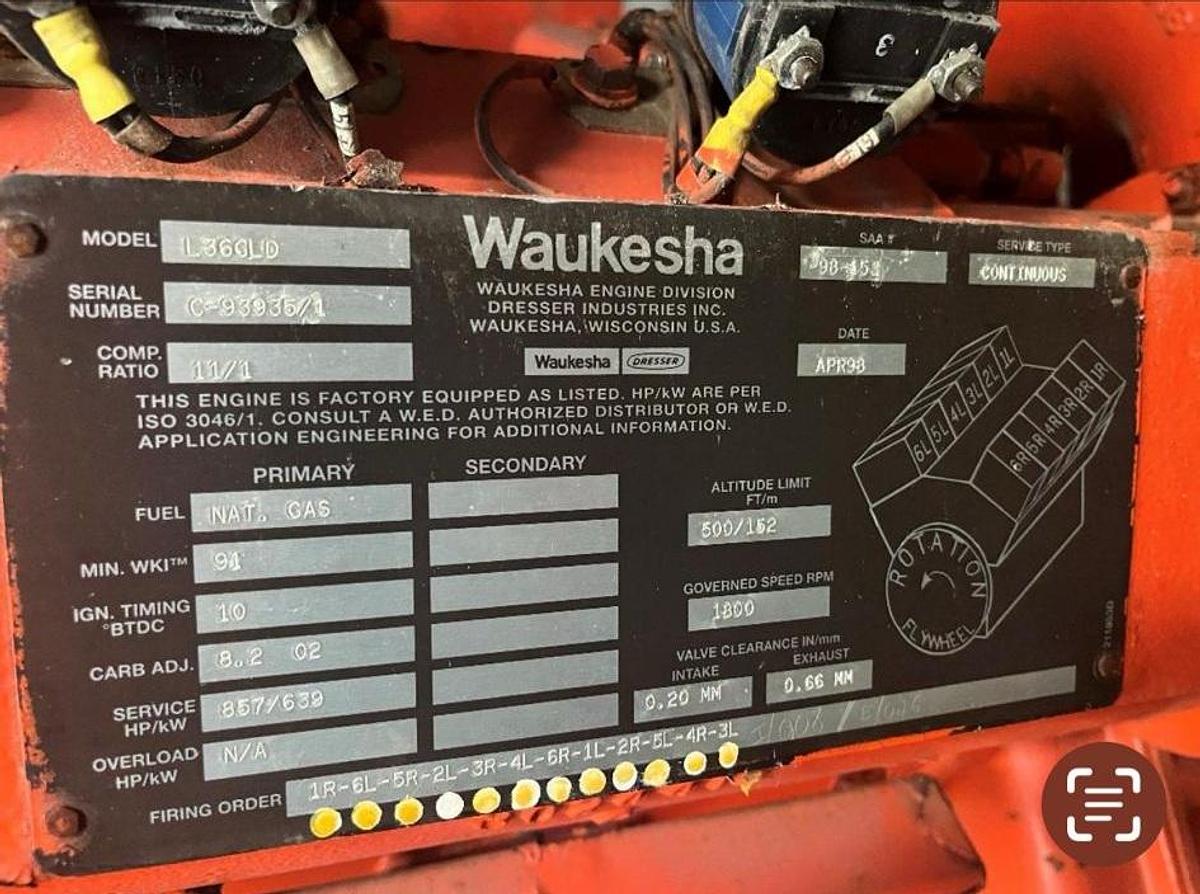

ENGINE SPECIFICATIONS

• Make / Model: Waukesha VGF36GLD
• Serial Number: C-93935/1
• Configuration: V-12, 4-cycle, turbocharged, aftercooled
• Displacement: (approx. 1090 cu in / 18 L – VGF Series)
• Fuel Type: Natural Gas
• Compression Ratio: 11:1
• Ignition Timing: 10° BTDC
• Speed: 1800 RPM
• Continuous Rating: 600 kW / 750 kVA (0.8 PF)
• Altitude Rating: 500 ft
• Max Ambient Temp: 100 °F
• Service Type: Continuous
• Governor: Electronic
• Valve Clearance (Hot): Intake 0.20 mm / Exhaust 0.66 mm
• Hours: 11,337 (since new)
• Weight: ~18,000 lbs

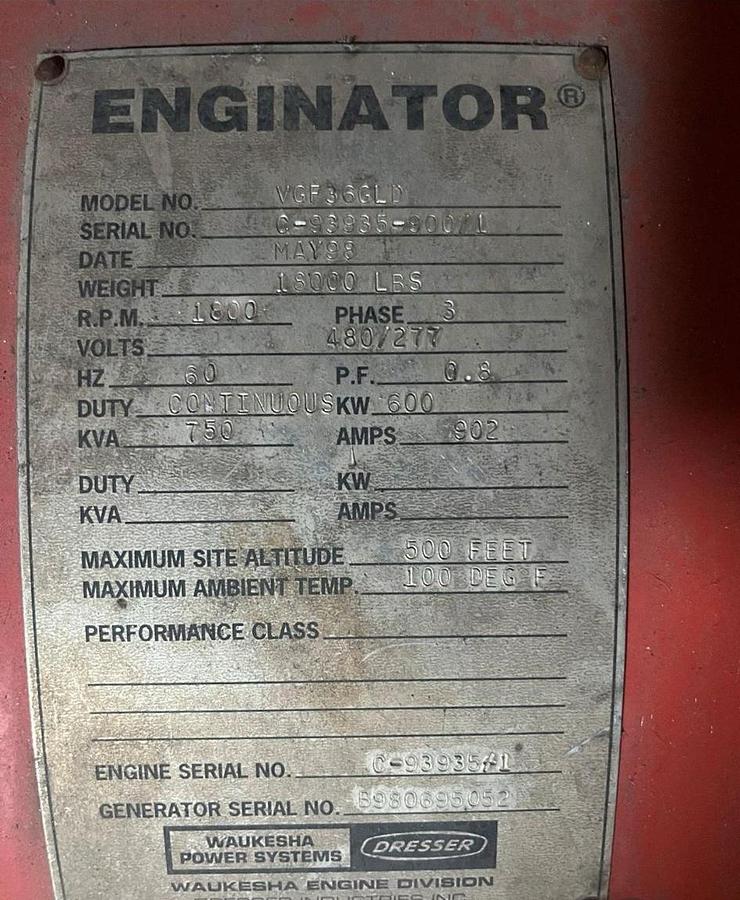

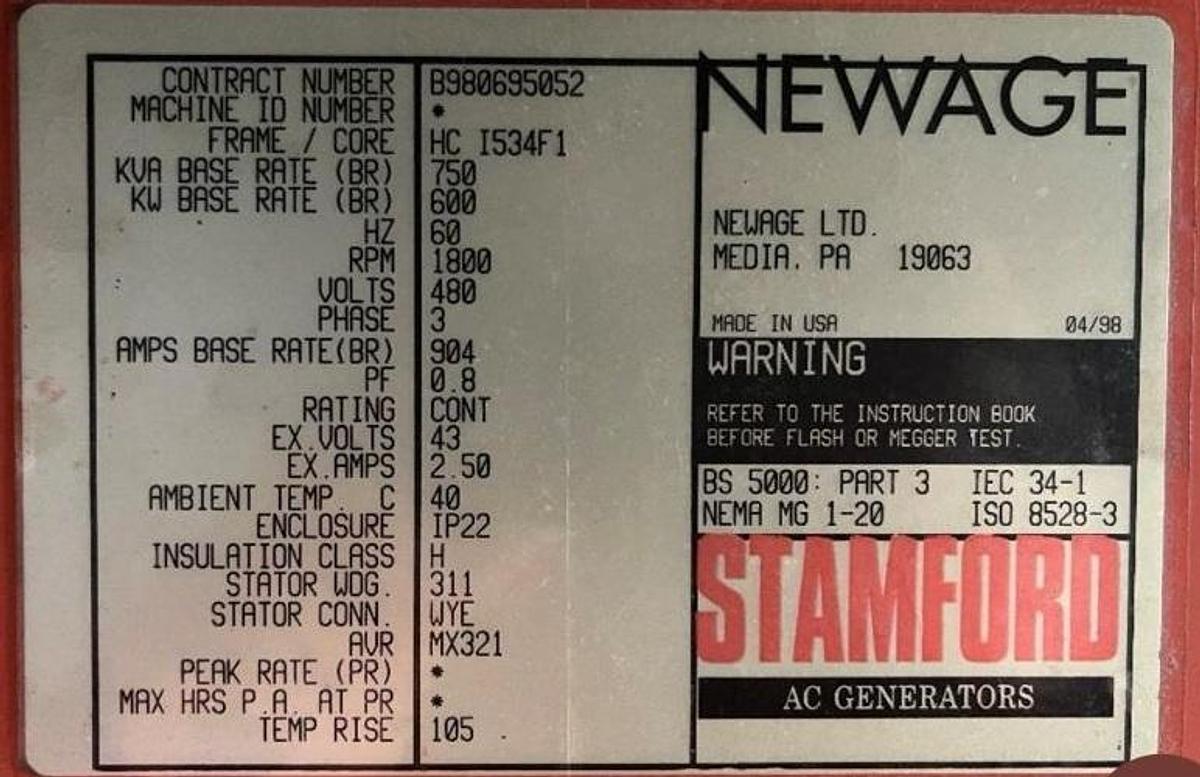

GENERATOR / ALTERNATOR

• Manufacturer: Newage Stamford (USA)
• Model: HC1534F1
• Serial Number: B980695052
• KVA Base Rate: 750
• KW Base Rate: 600
• Voltage: 480 V / 277 V
• Frequency: 60 Hz
• RPM: 1800
• Power Factor: 0.8
• Phase: 3-phase, Wye Connected
• Excitation: Brushless, MX321 AVR
• Insulation Class: H
• Enclosure: IP22
• Ambient Temperature: 40 °C
• Temperature Rise: 105 °C

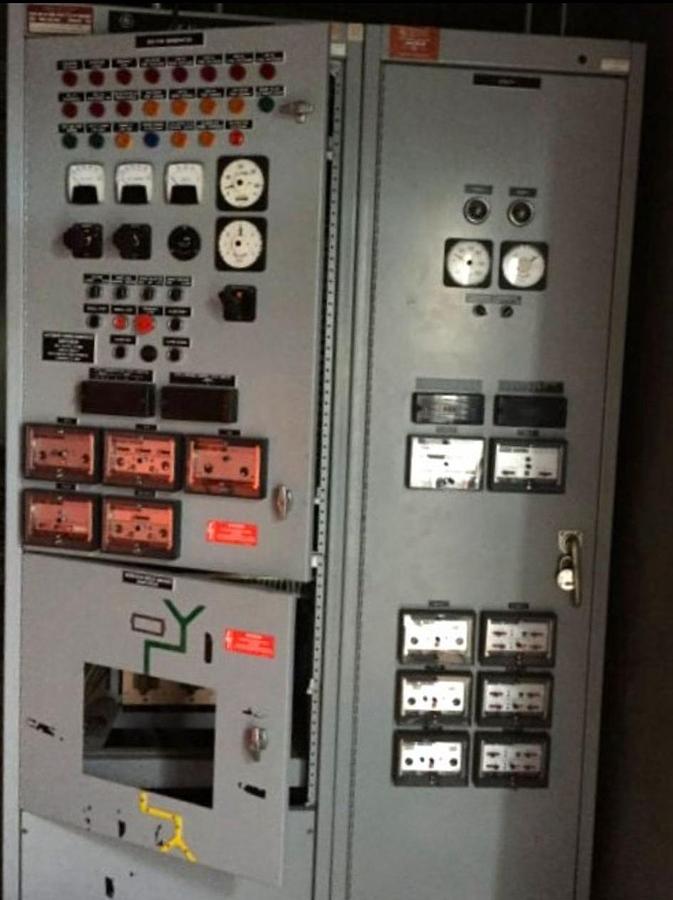

CONTROL & SWITCHGEAR

• Heavy-duty industrial control panel
• Analog gauges and protective meters
• Synchronizing / voltage adjustment controls
• Emergency stop and lockable breaker section

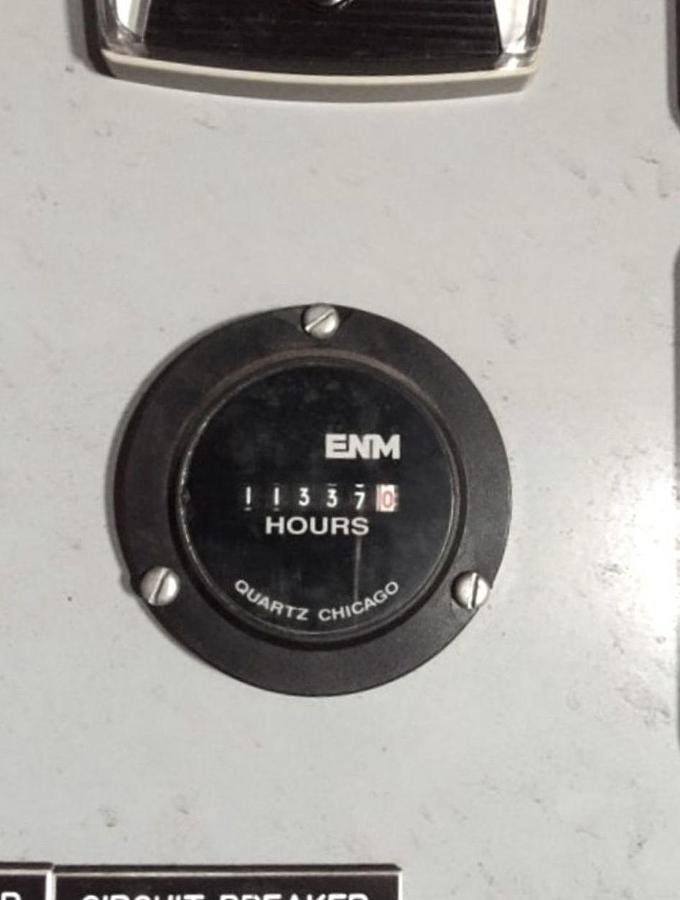

• ENM Quartz hour meter
• Panel includes voltmeter, ammeter, and phase indicators

FEATURES & CONDITION

• Factory-matched Waukesha / Stamford package
• Continuous-duty base load rated
• Operates on clean natural gas fuel for low emissions and maintenance
• Well-maintained industrial unit from a controlled facility
• Currently configured for 480V service
• Approx. 11,300 total hours
• Dry and clean indoor (never weather exposed)

🏭 APPLICATIONS

✅ Utility & industrial power plants

✅ CHP / Cogeneration projects

✅ Data centers & critical load backup

✅ Wastewater & municipal operations

✅ Greenhouse & agricultural facilitiess

DIMENSIONS & WEIGHT

• Approx. Dimensions: 200" L × 80" W × 90" H
• Approx. Weight: 18,000 lbs (Engine-Gen Set Only)

NOTES

• Removed from service in operating condition
