2018 Kohler 600kW Tier 2 Diesel Generator Set

Sold

2018 Kohler 600kW Tier 2 Diesel Generator Set

Location:Burbank, CA

Description

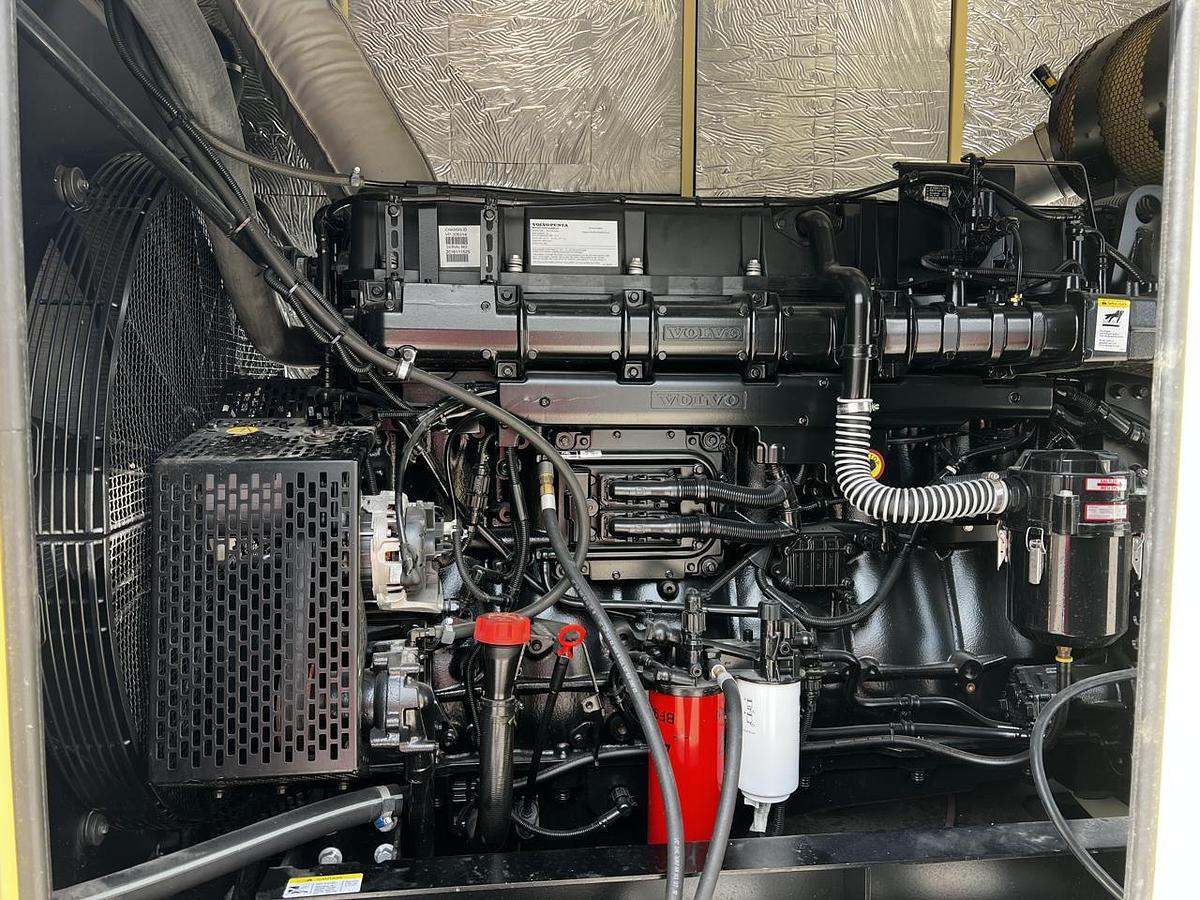

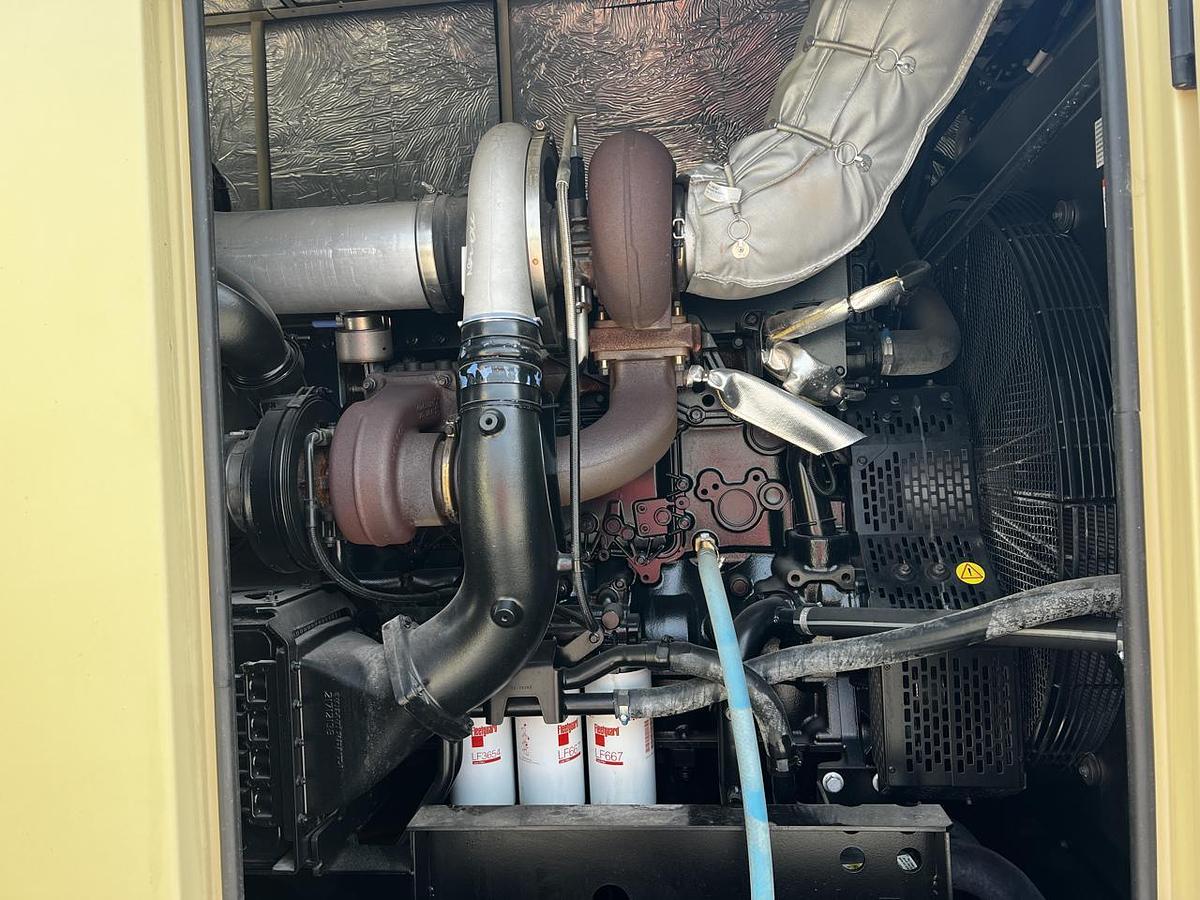

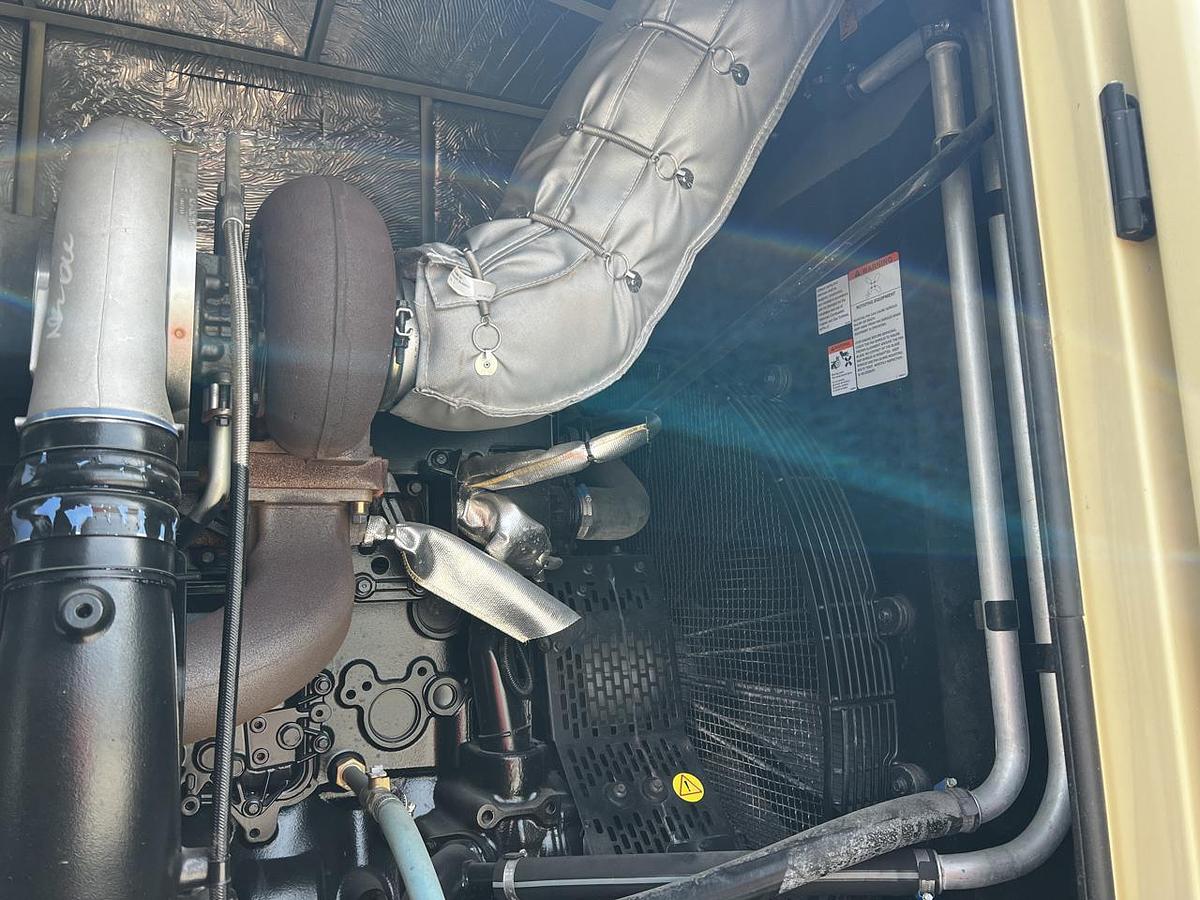

Pre-owned Kohler REOZVB Diesel Generator Set with Volvo Diesel Engine (TWD1643GE)

Rated at: 600kW Standby / 540kW Prime

277/480V, 3 Phase, 10-Lead Reconnectable

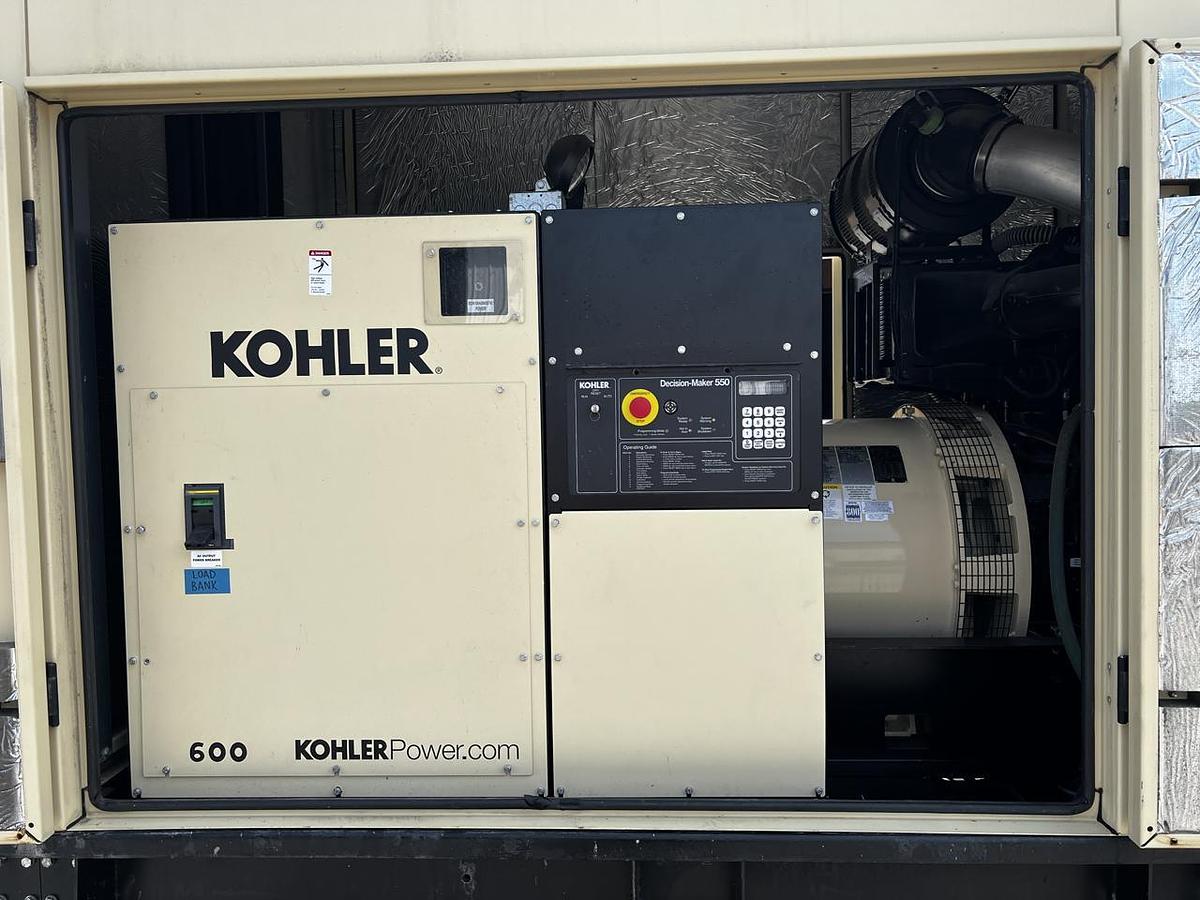

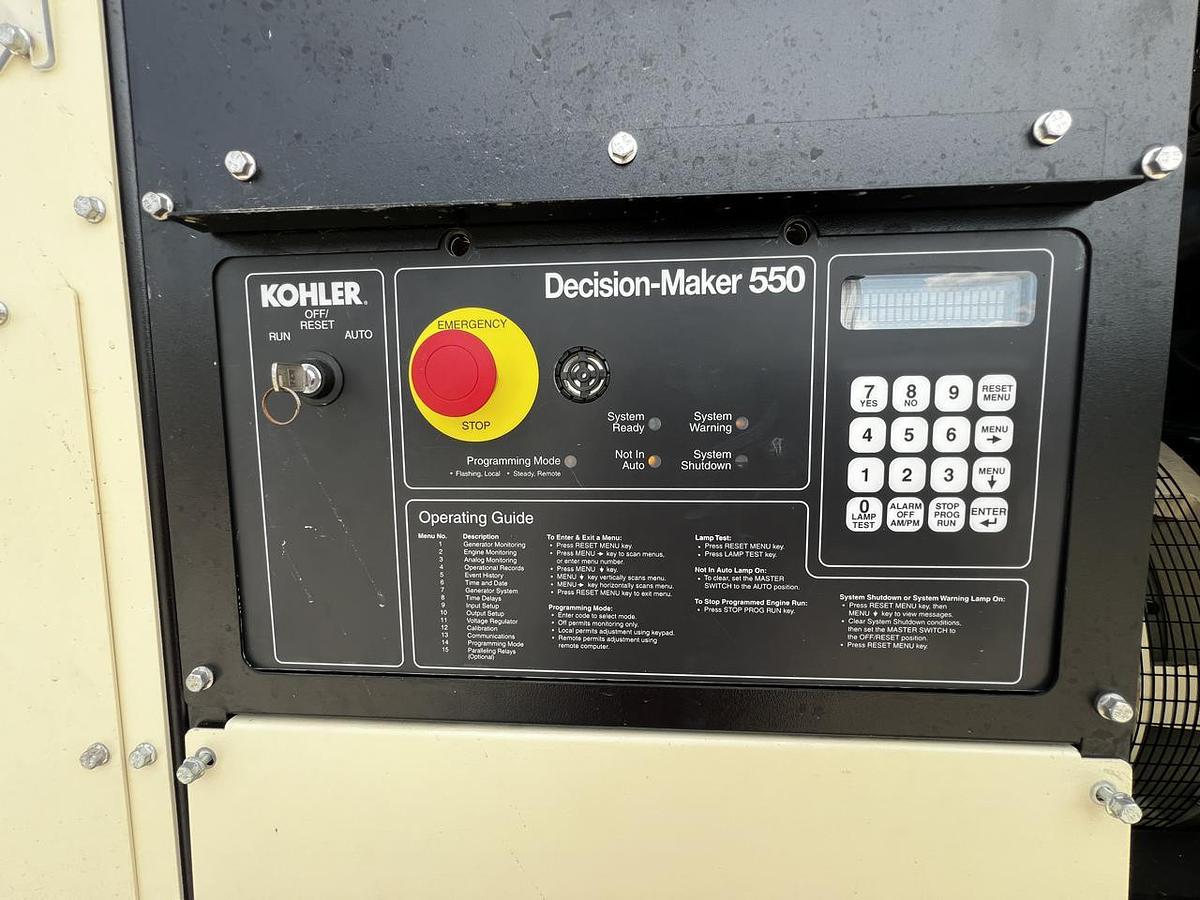

DecisionMaker 550 Digital Control Panel with Emergency Stop

EPA Certified Tier 2 Emissions Compliant – 903 HP

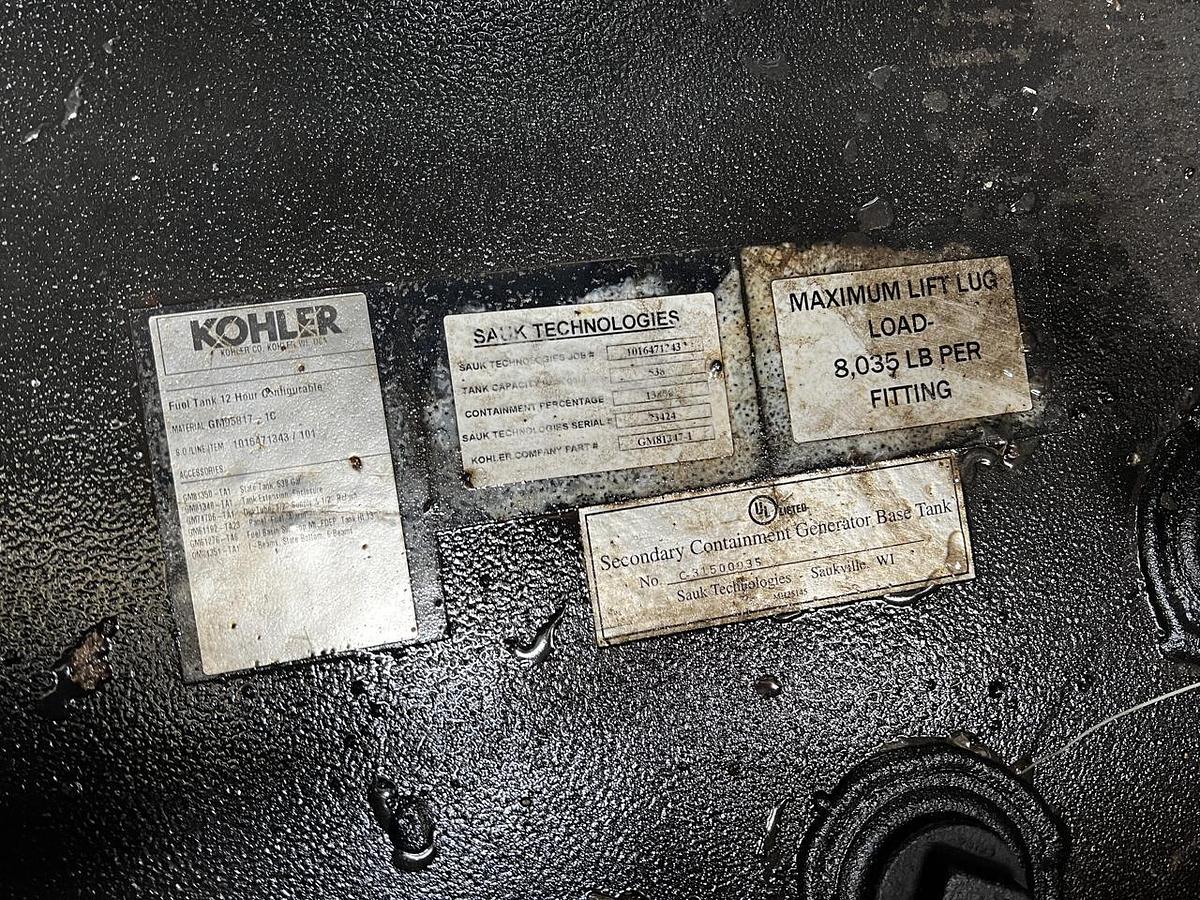

538 Gallon UL142 Listed Base Fuel Tank – 12 Hour Tank @ 100% Load

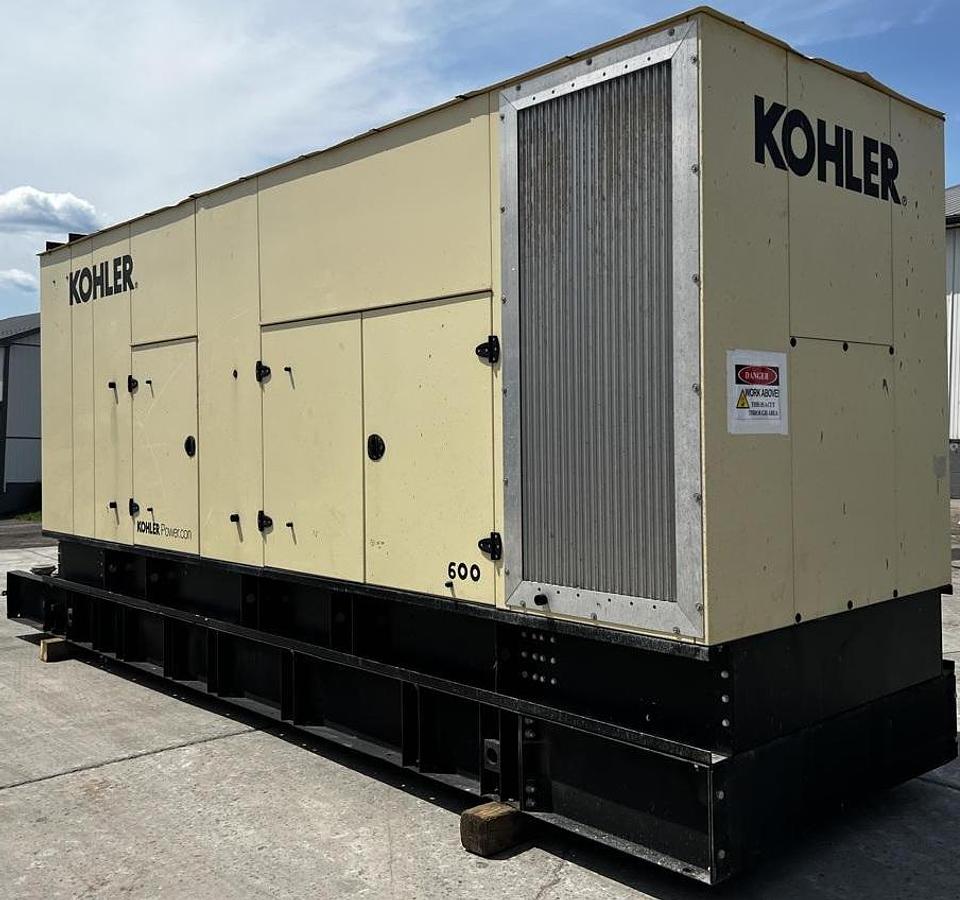

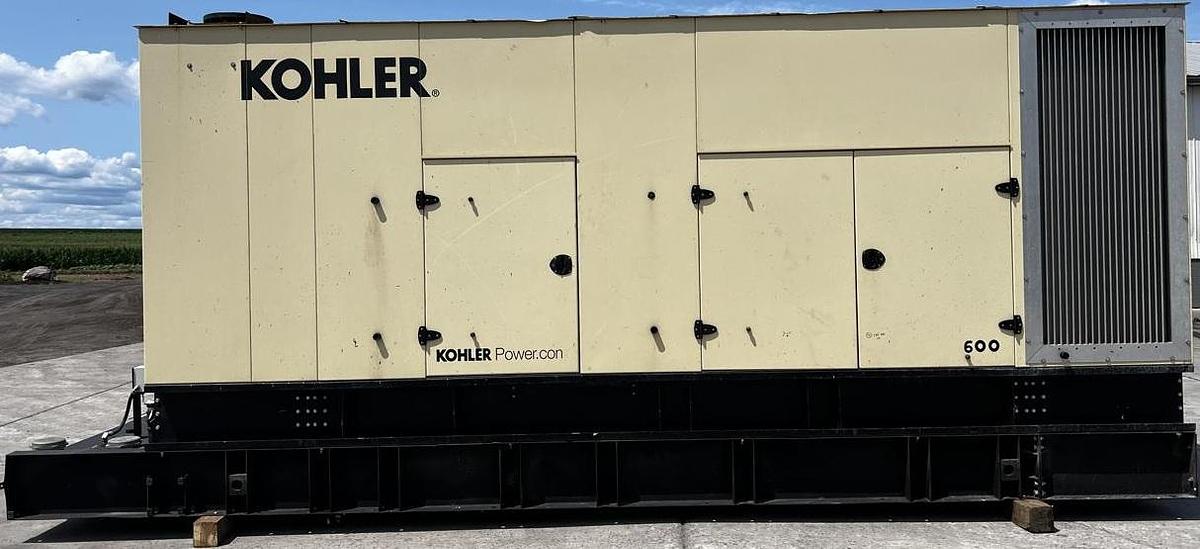

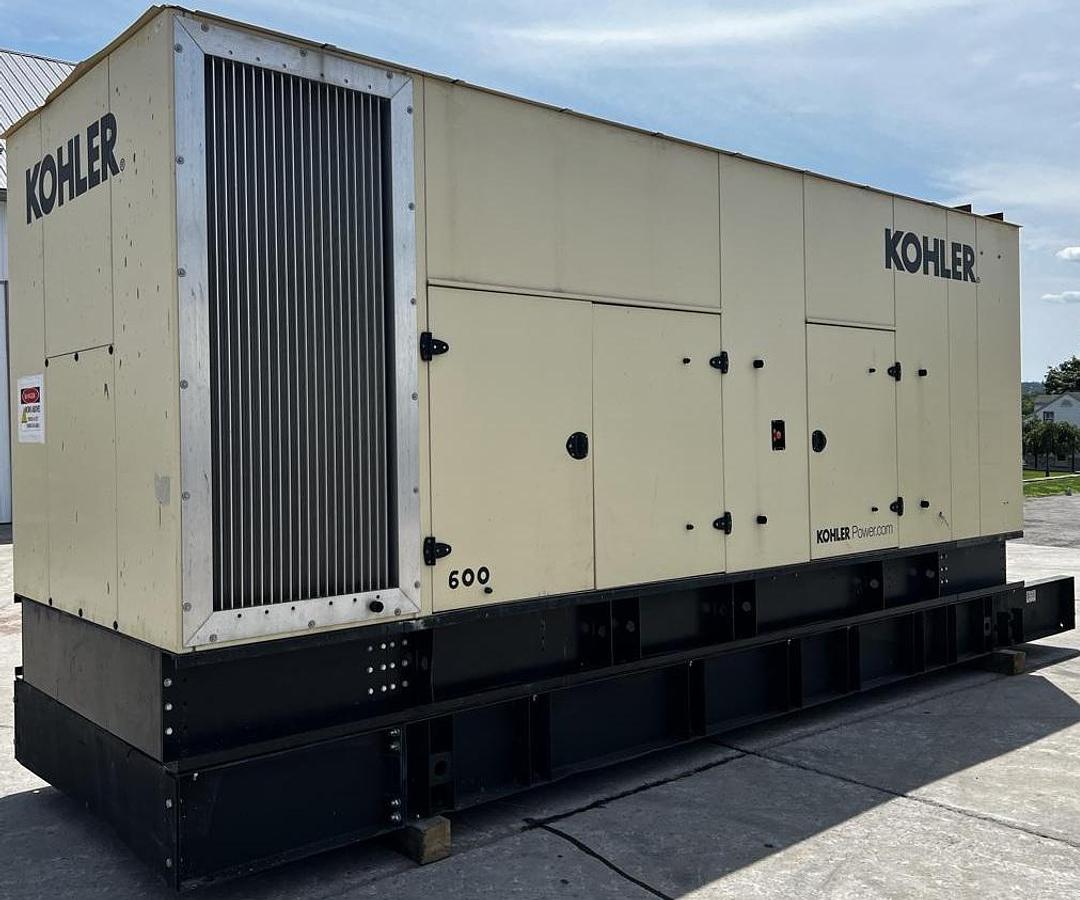

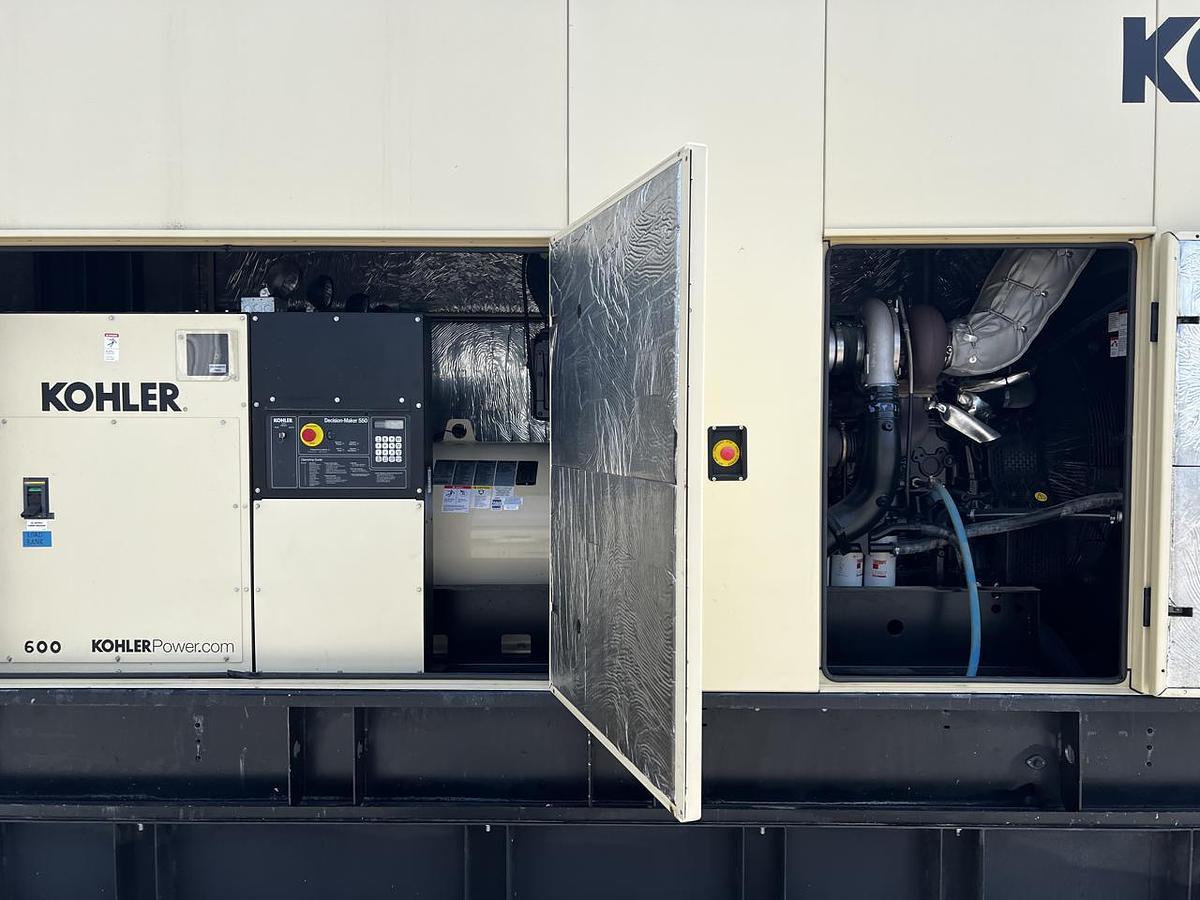

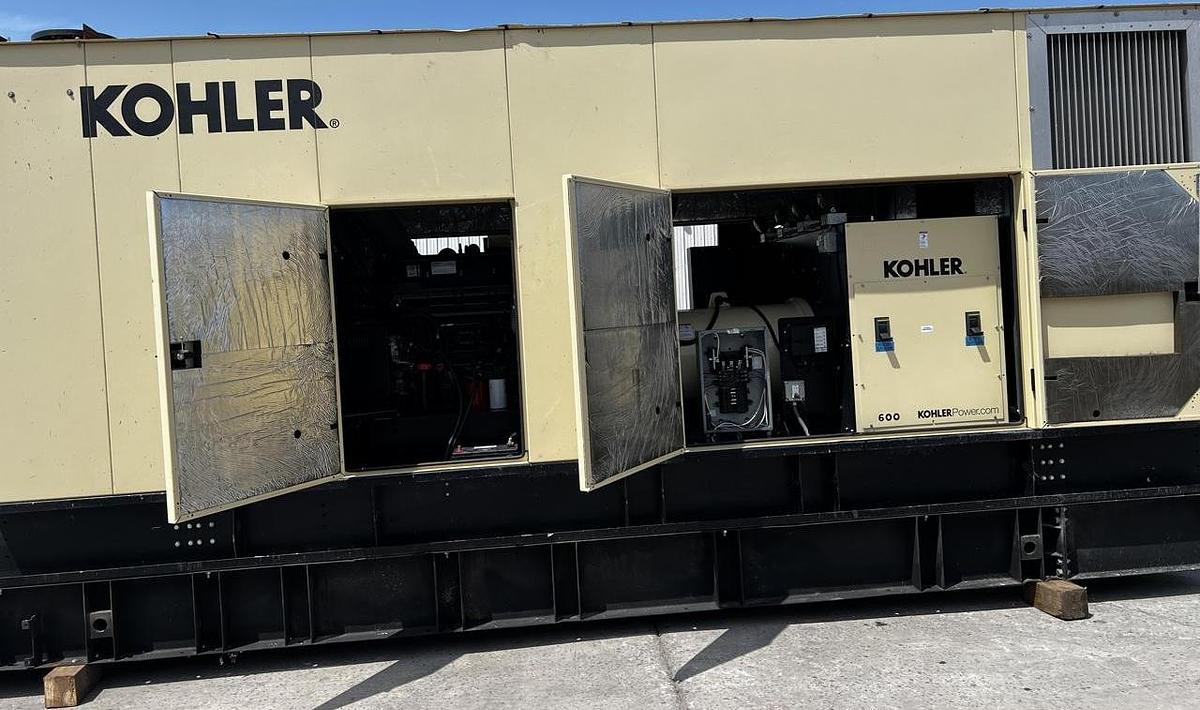

Level 2 Sound Attenuated Enclosure

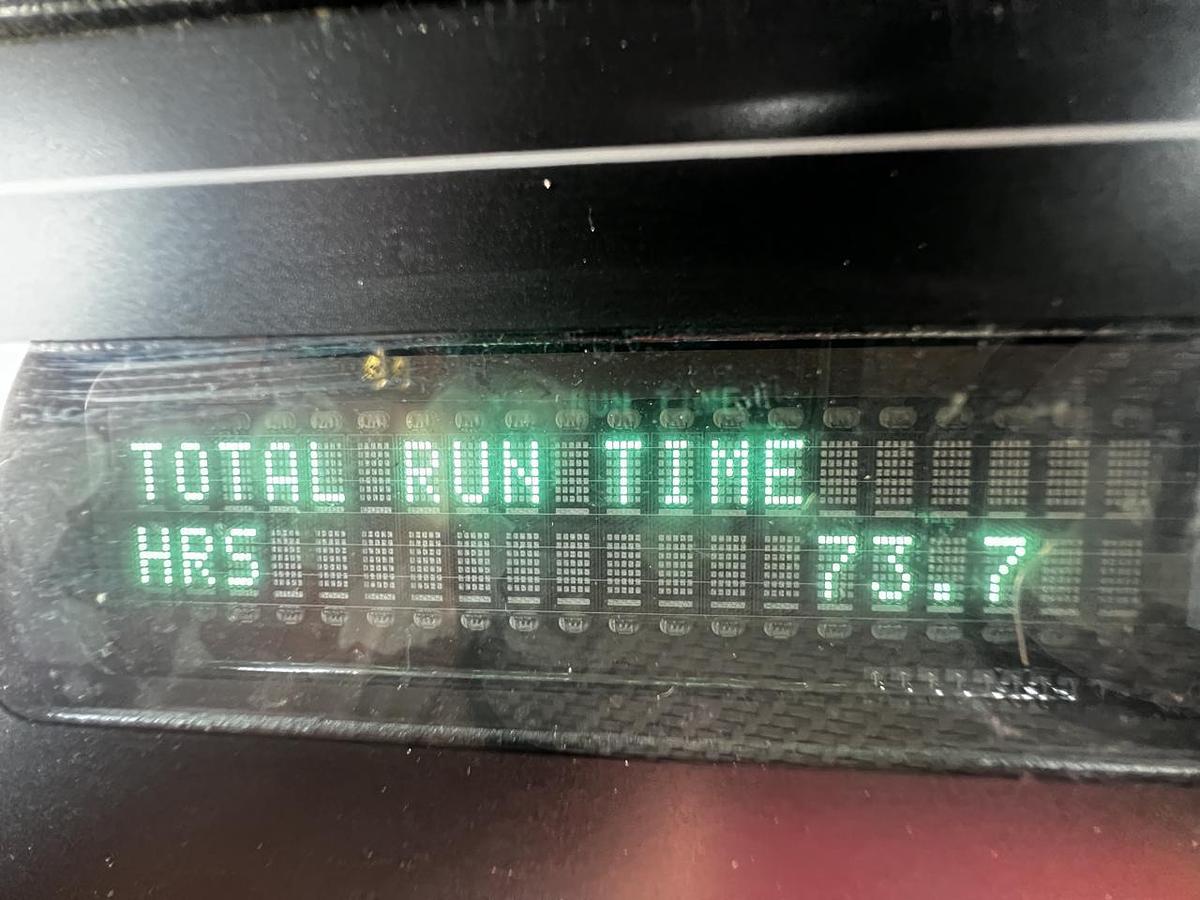

Only 80 Hours Since New – well maintained, serviced, tested and ready to ship!

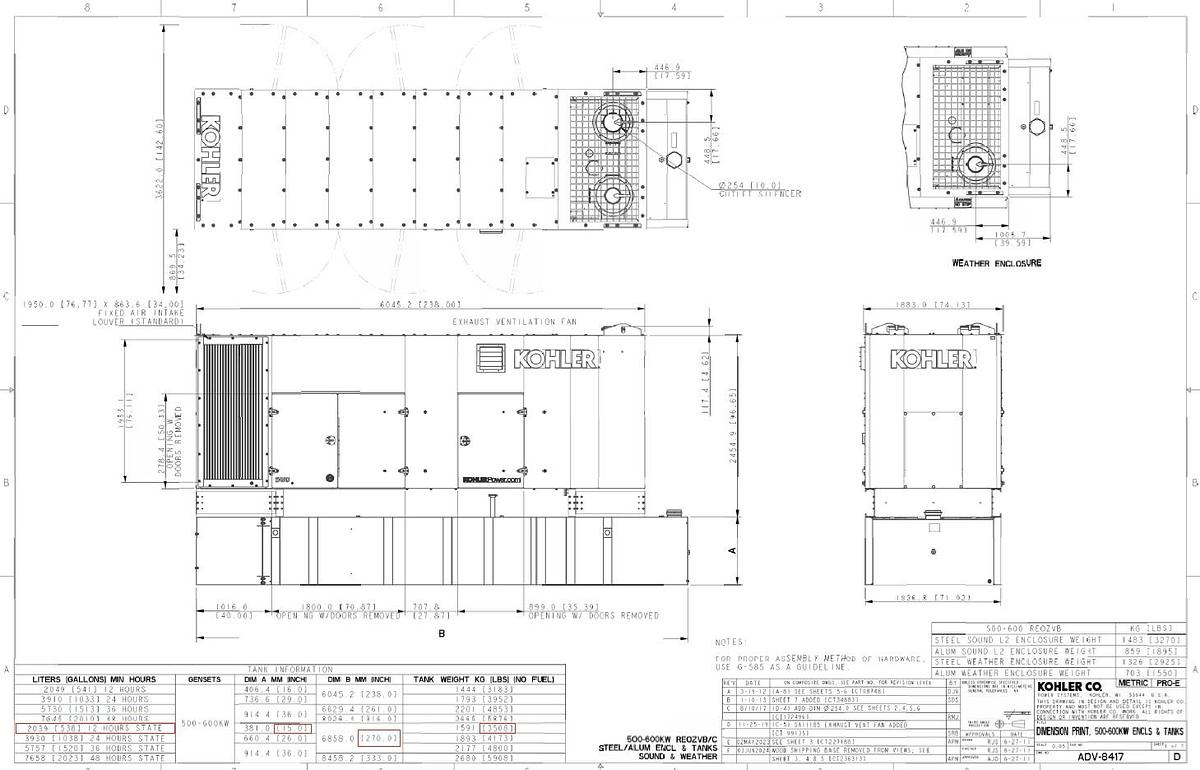

271″L  x  72″W  x  115″H  @  approx. 20k lbs.

  • This generator set accepts rated load in one step.
  • UL 2200 listing.
  • The 60 Hz generator set meets NFPA 110, Level 1 Standards
  • Kohler designed controllers for one-source system integration and remote communication.
  • The low coolant level shutdown prevents overheating.
  • Integral vibration isolation eliminates the need for under-unit vibration spring isolators.
  • An electronic, isochronous governor delivers precise frequency regulation.

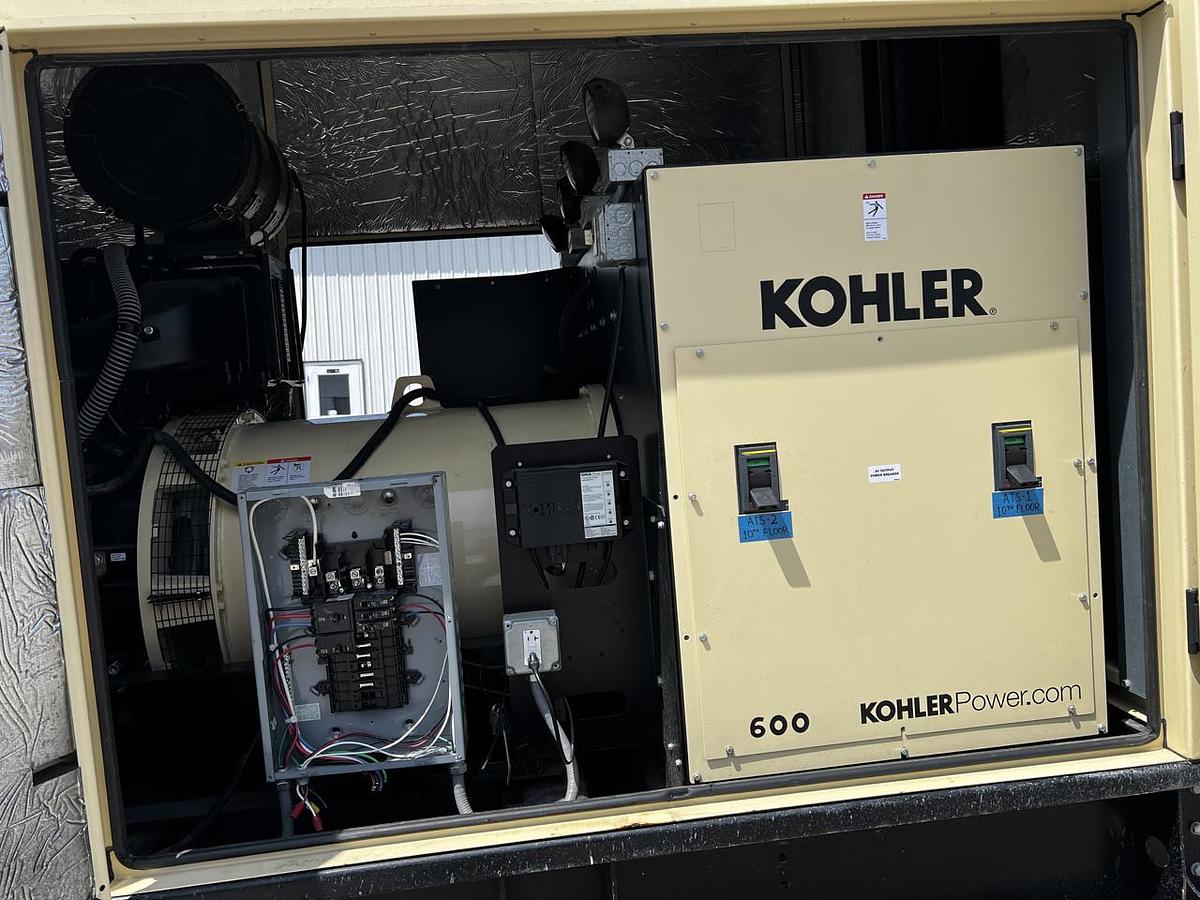

  • Multiple circuit breaker configuration available for this package.

    • Alternator Features

  • The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability.
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.
  • Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.
  • Brushless alternator with brushless pilot exciter for excellent load response.
  • Superior voltage waveform from a two-thirds pitch windings and skewed stator.


    • Show All

    Specifications

    ManufacturerKohler
    Model600REOZVB
    Year2018
    ConditionUsed
    Stock NumberARC1008
    Package MakeKohler
    Engine ManufacturerVolvo
    Engine ModelTWD1643GE
    Engine Horsepower (HP)903
    RPM1800
    Duty RatingStandby
    EmissionsTier 2 Certified

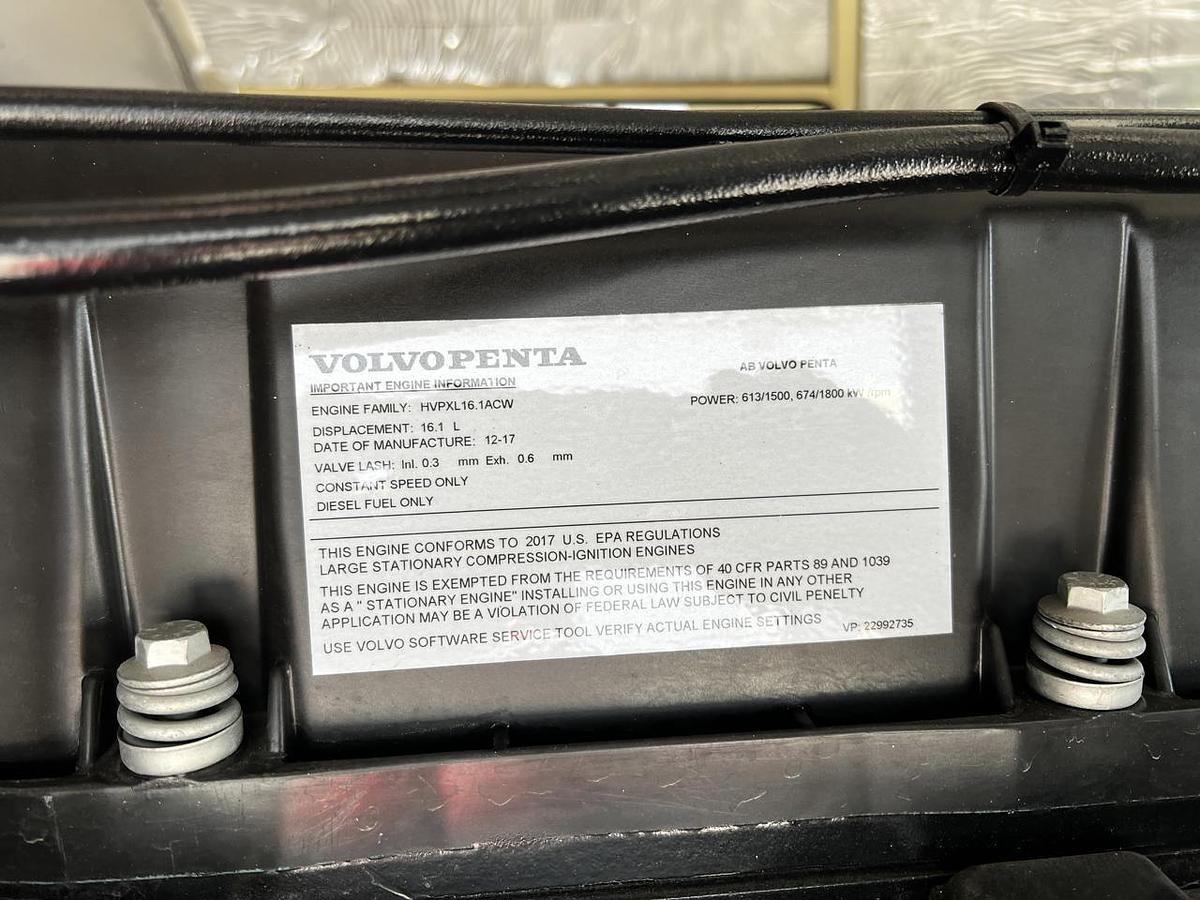

    EPA Engine Family NumberHVPXL16.1ACW
    KW600
    KVA750
    Voltage277/480V
    Phase (Ø)Three Phase
    Frequency (Hz)60
    EnclosureSound Attenuated
    Fuel TankUL142 Sub Base Tank w/Secondary Containment
    Fuel TypeDiesel
    Fuel Capacity (Gallons)538
