2019 MultiQuip CG500V4F 500kW Prime Tier 4 Final Rental Grade Power Module - CARB Certified

Pre-Owned 2019 MultiQuip CG500V4F Rental Grade Diesel Generator Set

CALIFORNIA COMPLIANT!

Volvo TWD1672GE Diesel Engine

Rated: 500kW PRIME / 550kW Standby

EPA Tier 4 Final Emissions Compliant with California CARB Permit

Approx. 8000 hours since new

2000AMP Main Line Circuit Breaker

Rated Voltage Maximum Standby Amps3Ø 208 Volt = 1908 Amps3Ø 480 Volt = 827 Amps

STANDARD FEATURES Volvo Heavy Duty Diesel Engine Heavy duty, 4-cycle, direct injection, turbocharged, air to air intercooled diesel engine provides maximum reliability.

EPA certified Final Tier 4 emission compliant engine with onboard SCR.

Fuel System1000 gallon, double wall UL142 fuel tank, provides 26 hours of runtime at full load.84 gallons of DEF. Provides 34 hours of run time.Fittings and manual fuel valves for external fuel supply.Fueling Ladder (9-step Aluminum Construction).

AlternatorBrushless, 4-pole, synchronous, WYE connection. Manual voltage reconnect board. Class H insulation system conforms to NEMA MG1-1.65 and BS2757.Drip-proof, self-venting, with harsh duty exciters.

Electronic Voltage Regulator Electronic automatic voltage regulator provides precise regulation. Separate three-phase PMG for fast recovery from block loads and motor starting.

Full Load Acceptance Accepts 100% of standby nameplate rating in one step, in compliance with NFPA, para 5-13.2.6.

Generator Control Panel Basler DGC2020HD Paralleling Controller with Color LCD

Touch Screen Display. Manual or remote engine start/stop. Safety shutdowns. Externally mounted emergency stop switch. Generator mainline circuit breaker, 100% rated, electronically operated, UL listed.

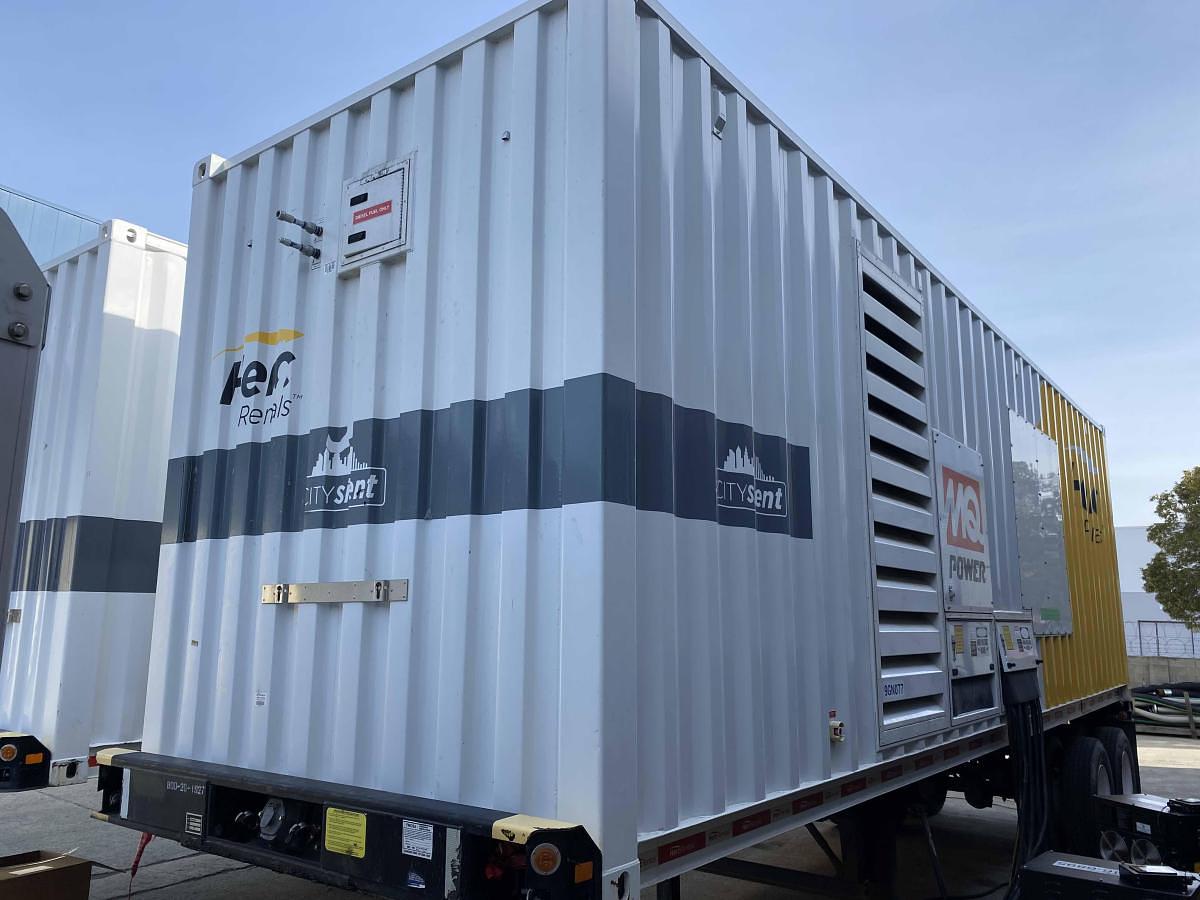

Specially Designed Container 30-foot ISO container, sound-attenuated with acoustical insulation for extremely quiet operation. Integral vibration isolators. Exterior polyurethane coating system provides long life in extreme operating conditions. Interior LED work lights and timer switch. Entrance Ladder (6-Step Aluminum Construction).

Sound Attenuated 30-ft Container Chassis

DIMENSIONS

360″L  x  96″W  x  163″H  @  approx. 40k lbs. (wet with trailer)
